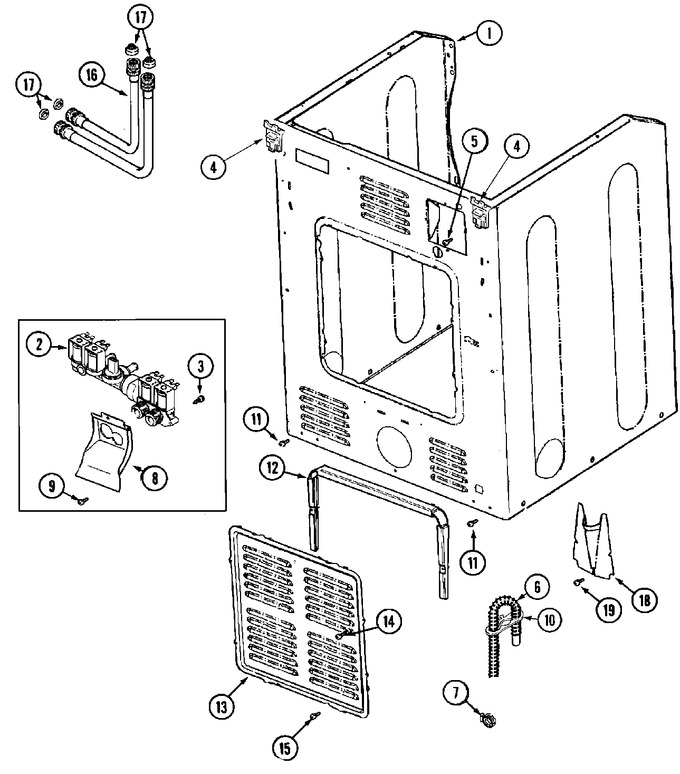

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003639		Cabinet Assy. (wht As Pk)	10	Appelez-nous	-
002	WP489503		Clamp, Hose (bleach Hose)   (Replaces: 205161)	10		Immediately	$ 9.68
002	22002944		Valve, Water	10			$ 110.42
003	22002436		Screw, Water Valve	10	Appelez-nous	-
004	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
004	22003367		Hinge, Plastic	10	Appelez-nous	-
005	NLA		Washer, Ground Lug	10	Appelez-nous	-
006	22002893		Tie, Cable	10	Appelez-nous	-
006	22002932		Clip, Drain Hose	10	Appelez-nous	-
006	12001807		Hose, Drain (corrugated)   (Replaces: 22002891)	10			$ 49.51
007	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
008	33002212		Bracket, Water Valve	10	Appelez-nous	-
009	Y313561		Screw, Water Valve Bracket	10			$ 5.27
010	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
011	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
012	22002022		Spacer, Access Panel	10	Appelez-nous	-
013	22002092		Panel, Access	10	Appelez-nous	-
014	WP67006908		Screw, Access Panel Spacer   (Replaces: 22002295)	10		Immediately	$ 7.16
015	WP489128		Screw, Access Panel   (Replaces: 22001996)	10			$ 9.79
016	W11629055		Inlet Hose Assembly   (Replaces: 208100)	10			$ 24.93
016	22002229		Strainer	10	Appelez-nous	-
017	Y013783		Washer, Inlet Hose	10			$ 18.72
018	22002704		Cover, Drain Hose	10	Appelez-nous	-
019	W11573574		Screw, Drain Hose Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
