SELECT A DIAGRAM

01 - Base


02 - Spinner Assembly & Outer Tub Cover


03 - Outer Tub


04 - Cabinet-rear


05 - Control Panel


06 - Control Center (pd)


07 - Top


08 - Cabinet-front


09 - Door, Front Panel & Shroud


10 - Wiring Information


11 - Motor & Motor Control

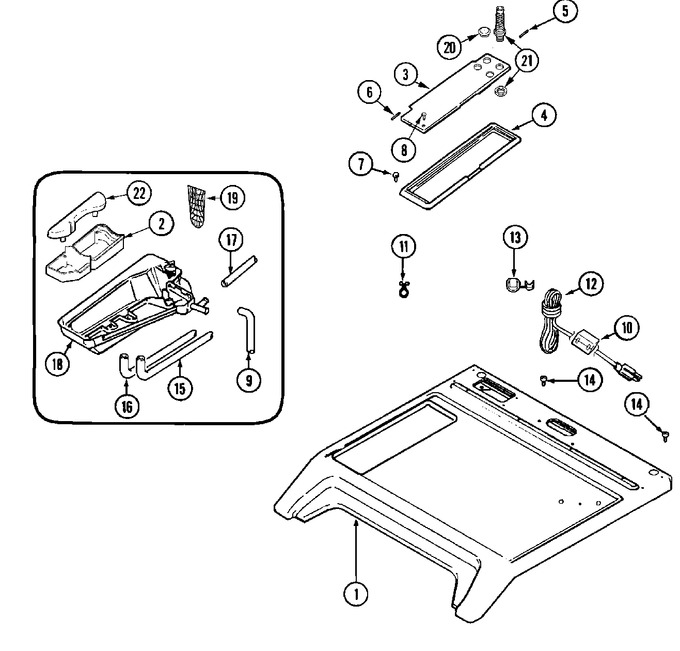

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003586		Cover, Top (wht-as Pk)	10	Appelez-nous	-
001	22004178		Cover, Top (wht-as Pk)	25	Appelez-nous	-
002	22002265		Cup, Siphon	10			$ 25.22
003	22002909		Lid, Dispenser (opl)	10	Appelez-nous	-
003	WP3400806		Screw   (Replaces: 22002910)	10			$ 6.94
004	WP22003665		Bezel, Dispenser   (Replaces: 22003665)	10			$ 70.45
005	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
006	Y912679		Pin, Hinge (short)	10			$ 3.98
007	W11772394		Screw, Dispenser Bezel   (Replaces: 22002230)	10		Immediately	$ 10.94
008	WP3400806		Screw, Dispenser Lid   (Replaces: 22002910)	10			$ 6.94
009	22003259		Hose, Shower	10	Appelez-nous	-
010	33002501		Filter, Emi	10	Appelez-nous	-
011	WP90767		Screw, Wire Tie   (Replaces: 212276)	10		Immediately	$ 7.04
011	WP74007164		Wire Tie, Twist Lock   (Replaces: 22002027)	10			$ 6.85
012	22003045		Cord, Power	10	Appelez-nous	-
013	22003223		Grommet, Cord	10	Appelez-nous	-
014	WP489128		Screw, Power Cord & Ground   (Replaces: 912365)	10			$ 9.79
015	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
015	22002551		Hose, Bleach	10	Appelez-nous	-
016	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
016	22002552		Hose, Fabric Softener----na	10	Appelez-nous	-
017	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
017	22003260		Extension, Nozzle	10	Appelez-nous	-
018	22003322		Top, Dispenser (flume)	10	Appelez-nous	-
018	22003723		Bottom, Dispenser	10	Appelez-nous	-
019	22003321		Grid, Dispenser	10	Appelez-nous	-
020	22003057		Plug, Hole	10	Appelez-nous	-
021	22002908		Tube Fitting, Flexible	10	Appelez-nous	-
022	22002266		Cap, Siphon	10			$ 37.23

    View Diagram in Separate Window       Print Part List
