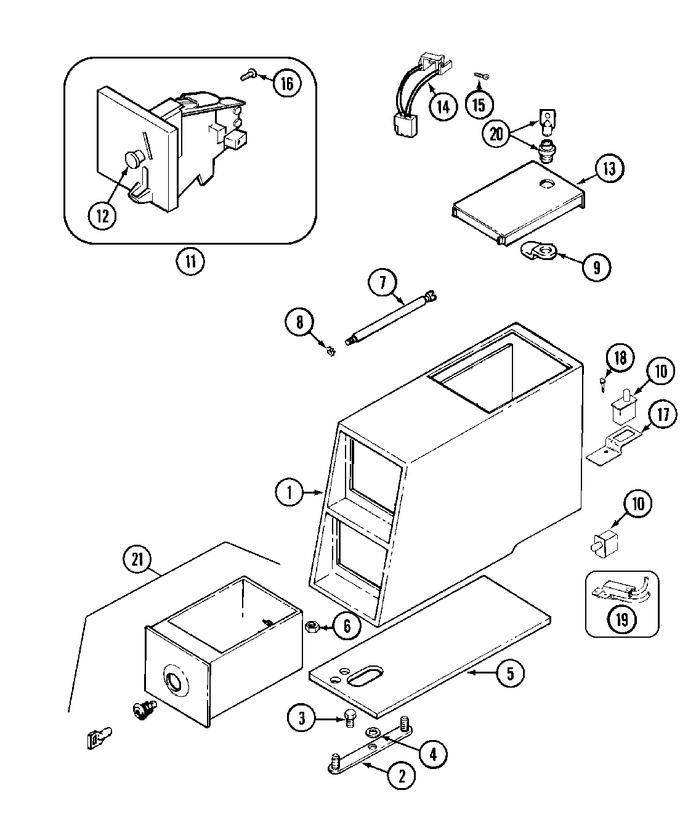

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002480		Vault, Coin (wht)pd	10	Appelez-nous	-
001	22003901		Vault Switch Shield	10	Appelez-nous	-
002	22001810		Strap, Mounting	10	Appelez-nous	-
003	WP489128		Screw, Mounting Strap   (Replaces: 22001996)	10			$ 9.79
004	910309		Washer, Mounting Strap	10	Appelez-nous	-
005	22002072		Gasket, Control Center (wht)	10	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	10			$ 6.85
007	213035		Bolt, Locking	10			$ 5.84
008	910181		Lockwasher, Locking Bolt	10	Appelez-nous	-
009	NLA		Cam, Locking	10	Appelez-nous	-
010	WPW10131838		Switch, Sensor   (Replaces: 33001250)	10			$ 21.52
010	912012		Screw, Sensor Switch	10	Appelez-nous	-
011	22003041		Coin Drop Assembly(yen)	10	Appelez-nous	-
012	216200		Button, Return	10	Appelez-nous	-
013	22001910		Door, Access (wht)	10	Appelez-nous	-
013	22003900		Access Door Switch Shield	10	Appelez-nous	-
014	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	10		Immediately	$ 104.31
015	WP3395530		Screw, Optic Switch   (Replaces: 314665)	10			$ 6.93
016	216068		Screw, Coin Drop	10	Appelez-nous	-
017	22001404		Bracket, Switch	10	Appelez-nous	-
018	WP90767		Screw, Switch Bracket   (Replaces: 22001069)	10		Immediately	$ 7.04
019	22003790		Harness, Wire	10	Appelez-nous	-
020	206637		Lock Kit	10			$ 68.04
020	WPW10140858		Key Zb7   (Replaces: 215033)	10		Immediately	$ 19.89
021	W10124350		Not Provided By Maytag	10	Appelez-nous	-
