SELECT A DIAGRAM

02 - Oven , Lit/optional


03 - Microwave Cabinet

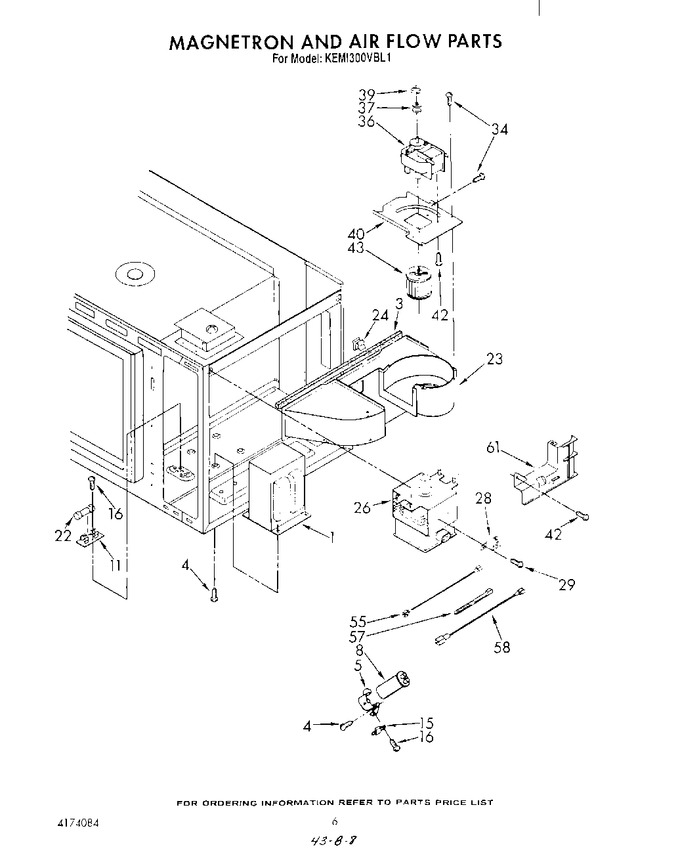

04 - Magnetron And Air Flow


05 - Stirrer Drive


06 - Microwave Door And Latch


07 - Microwave Cabinet And Shelf


08 - Oven Door


09 - Control Panel


10 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148101		Transformer		Appelez-nous	-
3	313752		Seal, Foam		Appelez-nous	-
4	312185		Screw (4)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	661004		Capacitor		Appelez-nous	-
11	312713		Screw (2)		Appelez-nous	-
11	4454949		Block, Fuse   (Replaces: 314121)				$ 81.63
15	312713		Screw		Appelez-nous	-
15	313830		Rectifier, High Voltage		Appelez-nous	-
16	312713		Screw		Appelez-nous	-
22	WPW10017410		Fuse (20 Amp)   (Replaces: 309796)			Immediately	$ 19.05
23	313578		Air Duct (horizontal)		Appelez-nous	-
24	311311		Clip		Appelez-nous	-
26	660595		Magnetron		Appelez-nous	-
28	661165		Thermal Protector		Appelez-nous	-
29	312782		Screw (2)		Appelez-nous	-
34	312713		Screw		Appelez-nous	-
34	346893		Screw (2)		Appelez-nous	-
36	313641		Motor		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring (2)		Appelez-nous	-
40	313601		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw (4)   (Replaces: 311865)				$ 6.61
43	346893		Screw (3)		Appelez-nous	-
43	3147223		Wheel, Blower		Appelez-nous	-
55	313130		Jumper, High Voltage Black		Appelez-nous	-
57	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.11
58	3147863		High Voltage Lead, Gray		Appelez-nous	-
61	WP689790		Screw   (Replaces: 345893)				$ 51.62
61	3147262		Extension, Air Duct		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
