Diagram # Part Number Description Series Availability Ships Price Add to Cart
10 313639 Shelf, Microwave Appelez-nous -
12 313614 Trim, Shelf (front) Appelez-nous -
13 313615 Trim, Shelf (rear) Appelez-nous -
19 330514 Socket, Complete Appelez-nous -
20 WP3395618 Bulb, Oven Light   (Replaces: 313969) In-Stock Immediately $ 71.33

20 312713 Screw (2) Appelez-nous -
30 WP3149478 Support, Shelf (4)   (Replaces: 313653) Special Order $ 8.64

30 161463 Screw (4) Appelez-nous -
32 313663 Rack, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

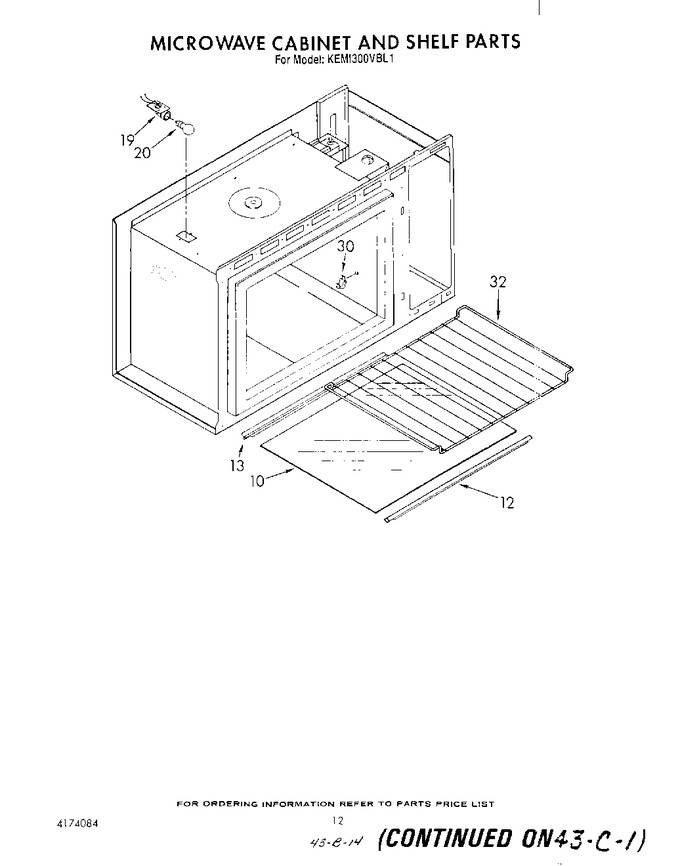

Diagram for KEMI300VBL1
