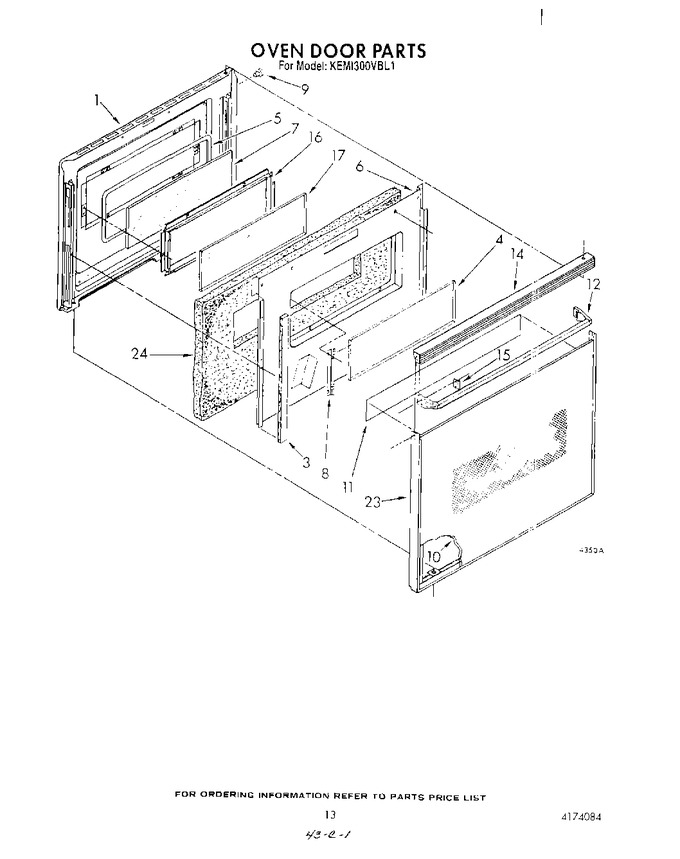

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw (6)		Appelez-nous	-
1	3170706		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148723		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Outside   (Replaces: 313005)				$ 135.71
8	3148443		Screw (4)		Appelez-nous	-
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper, Door (4)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	3148184		Foil, Handle		Appelez-nous	-
11	247326		Screw (2)		Appelez-nous	-
12	3147636		Handle, Door		Appelez-nous	-
12	3149333		Screw (3)				$ 5.33
14	307748		Screw (3)		Appelez-nous	-
14	3148606		Trim, Panel		Appelez-nous	-
15	314235		Clip, Mtg.(2)		Appelez-nous	-
15	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
16	3148234		Frame, Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
17	WP3169203		Glass, Inside   (Replaces: 313004)				$ 135.71
23	3148784		Frame, Door		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
