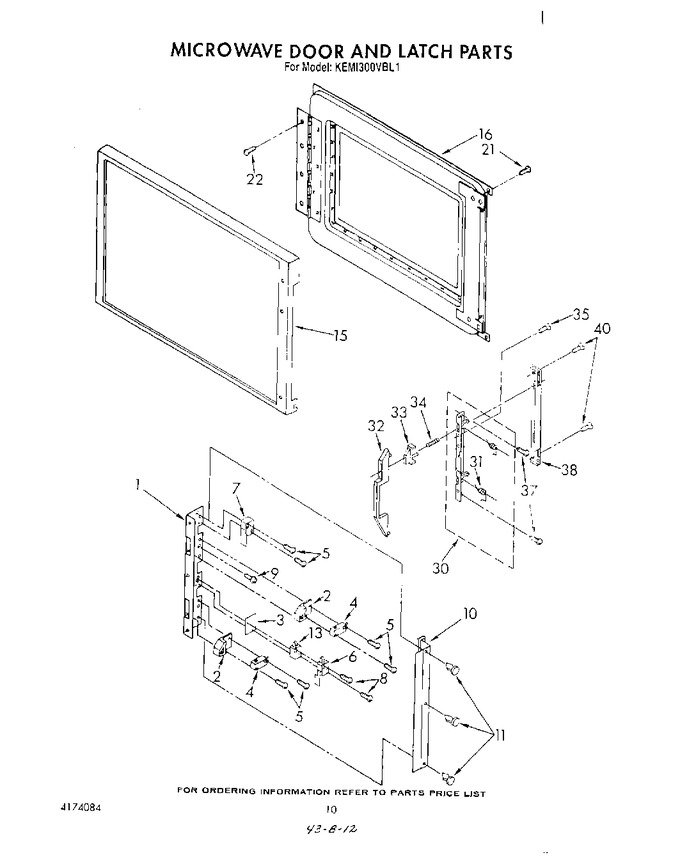

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312713		Screw		Appelez-nous	-
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313126		Insulator, Switch		Appelez-nous	-
4	814037		Switch, Minature   (Replaces: 661146)				$ 81.32
5	312717		Screw (4)		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
7	313120		Switch, Door		Appelez-nous	-
8	310211		Screw,		Appelez-nous	-
9	309080		Screw, Ground		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
11	313740		Fastener (2)		Appelez-nous	-
12	311928		Rivet, Pop (3)				$ 5.33
13	661144		Switch, Miniature		Appelez-nous	-
15	3170440		Frame, Door		Appelez-nous	-
16	3171012		Door, Inner		Appelez-nous	-
21	313823		Screw (2)		Appelez-nous	-
22	WPW10068250		Screw (6)   (Replaces: 311777)				$ 3.66
30	329066		Latch Assembly		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
32	314169		Handle, Door		Appelez-nous	-
33	313611		Button, Door Handle   (Replaces: 314168)				$ 35.65
34	310197		Spring, Compression		Appelez-nous	-
35	303776		Screw (2)   (Replaces: 313811)		Appelez-nous	-
37	313820		Screw (3)		Appelez-nous	-
38	3148297		End Cap		Appelez-nous	-
40	313823		Screw (2)		Appelez-nous	-
