| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

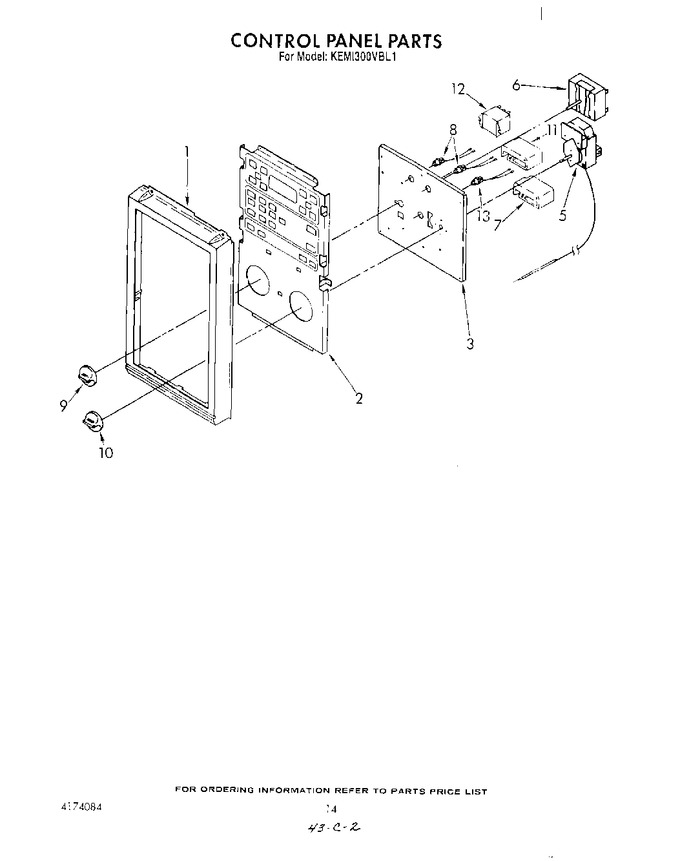

| 1 | 3148093 | Frame, Control Panel |
|
- | |||||
| 1 | 313818 | Screw (4) |
|
- | |||||
| 2 | 308119 | Screw (6) |
|
- | |||||
| 2 | 3147199 | Switch Membrane (control Module) |
|
- | |||||
| 3 | 308119 | Screw (4) |
|
- | |||||
| 3 | 3147282 | Bracket, Control (mounting) |
|
- | |||||
| 5 | 3148932 | Thermostat |
|
- | |||||
| 5 | WP313808 | Screw (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 6 | 312289 | Switch, Selector |
|
- | |||||
| 7 | 314210 | Switch, Bake |
|
- | |||||
| 7 | 314215 | Screw |
|
- | |||||
| 8 | 3147517 | Light, Indictor (4) |
|
- | |||||
| 9 | 3149116 | Knob, Control (2) |
|
- | |||||
| 10 | 3149106 | Knob, Adjustable |
|
- | |||||
| 10 | WP693995 | Washer, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 11 | 314209 | Switch, Broil |
|
- | |||||
| 11 | 312006 | Screw (2) |
|
- | |||||
| 12 | 246131 | Screw (2) |
|
- | |||||
| 12 | 314125 | Relay, Power |
|
- | |||||
| 13 | 3147832 | Adapter, Terminal |
|
- | |||||
| 13 | 313818 | Screw (4) |
|
- | |||||
| 13 | 3149034 | Light, Indicator |
|
- |
