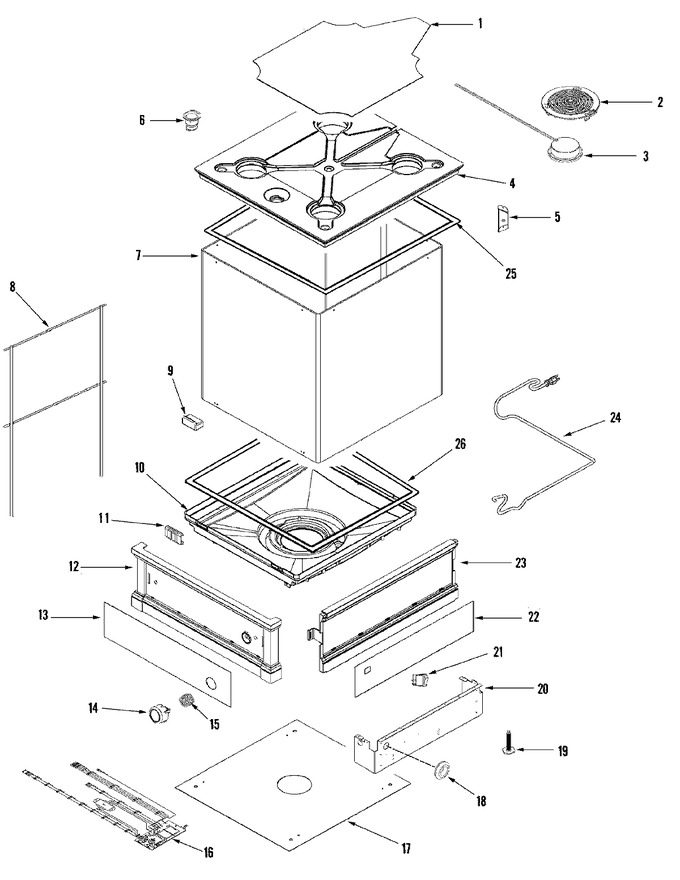

01 - Body
02 - Pump & Motor
03 - Rack Assembly (middle/lwr)
04 - Rack Assembly (upr)
05 - Water Distribution Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002870 | Cover, Top | 10 |
|
- | ||||
| 2 | 99002868 | Bezel, Lamp----na | 10 |
|
- | ||||
| 2 | 99002876 | Screw, Lamp Bezel | 10 |
|
- | ||||
| 3 | W10124350 | Not Required Part Or See Note Not A Servicable Part (contains 4 Halogen Lamps) | 10 |
|
- | ||||
| 3 | 99002916 | Bulb, Cube Halogen | 10 |
|
- | ||||
| 4 | 99002872 | Panel, Top | 10 |
|
- | ||||
| 5 | 99002879 | Washer, Sealing | 10 |
|
- | ||||
| 5 | 99002873 | Bracket, Corner | 10 |
|
- | ||||
| 5 | 99002877 | Bolt, Corner Bracket | 10 |
|
- | ||||
| 5 | 99002878 | Screw-phillips Pan Head | 10 |
|
- | ||||
| 6 | 99002871 | Neck, Fill | 10 |
|
- | ||||
| 7 | 99002874 | Enclosure | 10 |
|
- | ||||
| 8 | 99002893 | Support, Rack | 10 |
|
- | ||||
| 9 | 99002879 | Washer, Sealing | 10 |
|
- | ||||
| 9 | 99002880 | Screw-no.6-20x5/8``-410ss | 10 |
|
- | ||||
| 9 | 99002875 | Keeper, Latch | 10 |
|
- | ||||
| 10 | 99002894 | Basin, Cube | 10 |
|
- | ||||
| 11 | 99002892 | Latch, Cube | 10 |
|
- | ||||
| 12 | 99002899 | Grommet, Rear Panel | 10 |
|
- | ||||
| 12 | 99002897 | Screw, Panel | 10 |
|
- | ||||
| 12 | 99002891 | Panel, Front/rear | 10 |
|
- | ||||
| 13 | 99002890 | Panel, Graphic (frt) | 10 |
|
- | ||||
| 14 | 99002888 | Button, Push | 10 |
|
- | ||||
| 15 | 99002889 | Spring, Push Button | 10 |
|
- | ||||
| 16 | 99002879 | Washer, Sealing | 10 |
|
- | ||||
| 16 | 99002901 | Board, Control | 10 |
|
- | ||||
| 16 | 99002880 | Screw-no.6-20x5/8``-410ss | 10 |
|
- | ||||
| 17 | WP489128 | Screw-no.8x7/16 Hex Washer Head (Replaces: 99002553) | 10 |
|
$ 9.79 | ||||
| 17 | 99002881 | Panel, Bottom | 10 |
|
- | ||||
| 18 | 99002882 | Grommet, Basin Support | 10 |
|
- | ||||
| 19 | WPW10143258 | Leg, Leveling (Replaces: 912579) | 10 |
|
$ 13.81 | ||||
| 20 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 20 | 99002883 | Support, Basin | 10 |
|
- | ||||
| 21 | 99002884 | Switch, Rocker | 10 |
|
- | ||||
| 22 | 99002885 | Panel, Graphic (rt) | 10 |
|
- | ||||
| 22 | 99002886 | Panel, Graphic (lt) | 10 |
|
- | ||||
| 23 | 99002887 | Panel, Side | 10 |
|
- | ||||
| 23 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 24 | 99002898 | Bezel, Cord | 10 |
|
- | ||||
| 24 | 99002896 | Cord, Power | 10 |
|
- | ||||
| 25 | 99002906 | Seal, Enclosure | 10 |
|
- | ||||
| 26 | 99002906 | Seal, Enclosure | 10 |
|
- |
