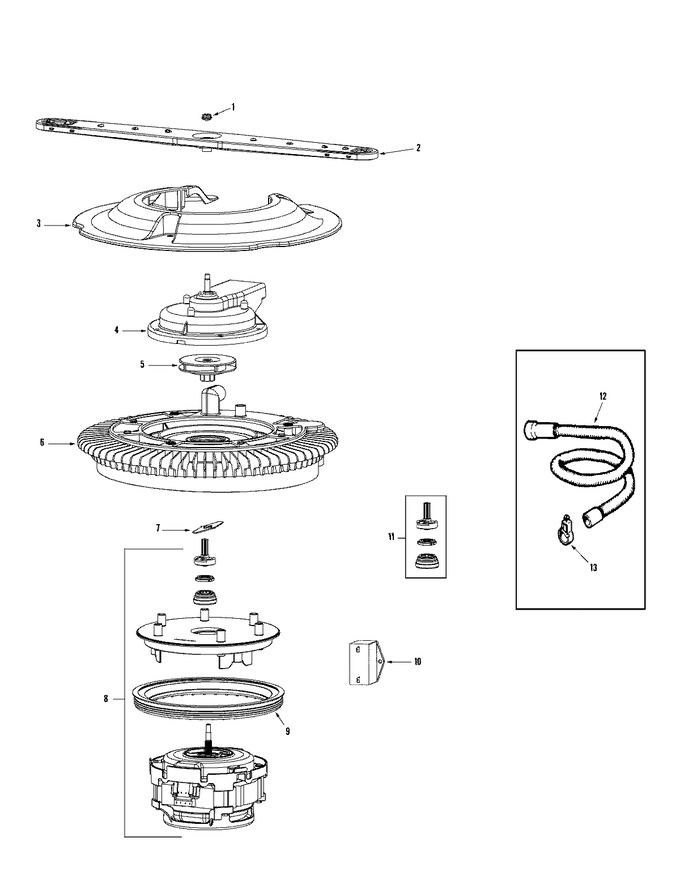

01 - Body
02 - Pump & Motor
03 - Rack Assembly (middle/lwr)
04 - Rack Assembly (upr)
05 - Water Distribution Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP99002654 | Cap, Wash Arm (Replaces: 99002654) | 10 |
|
Immediately | $ 8.54 | |||
| 2 | 99002678 | Wash Arm, Lower (w/shields) | 10 |
|
- | ||||
| 3 | 99002666 | Screw | 10 |
|
- | ||||
| 3 | 99002655 | Guard, Filter (gray) | 10 |
|
- | ||||
| 4 | 99002677 | Discharge Housing Assy (upr) | 10 |
|
- | ||||
| 4 | 99002664 | Screw, Discharge Housing | 10 |
|
$ 5.65 | ||||
| 5 | WP99002659 | Wash Impeller Assembly (Replaces: 99002741) | 10 |
|
Immediately | $ 50.27 | |||
| 5 | 99002660 | Screw, Impeller | 10 |
|
- | ||||
| 6 | WPW10192799 | Filter/flowplate Assembly (Replaces: 99002661) | 10 |
|
Immediately | $ 218.27 | |||
| 6 | 99002668 | Screw, Stainless Pan Head | 10 |
|
- | ||||
| 7 | 99002658 | Chopper | 10 |
|
$ 5.84 | ||||
| 8 | 99002759 | Wash Motor Assy Seal Not Incl | 10 |
|
- | ||||
| 8 | 99002666 | Screw | 10 |
|
- | ||||
| 9 | 99002663 | Gasket, Pump | 10 |
|
- | ||||
| 10 | 99002601 | Screw 10-32x.400 (t-20 Head) | 10 |
|
- | ||||
| 10 | 99002665 | Capacitor, Motor | 10 |
|
$ 31.01 | ||||
| 11 | 99002760 | Wash Motor Seal Kit | 10 |
|
- | ||||
| 12 | 99002895 | Hose, Drain (vinyl) | 10 |
|
- | ||||
| 13 | 99002904 | Clamp, Hose | 10 |
|
- |
