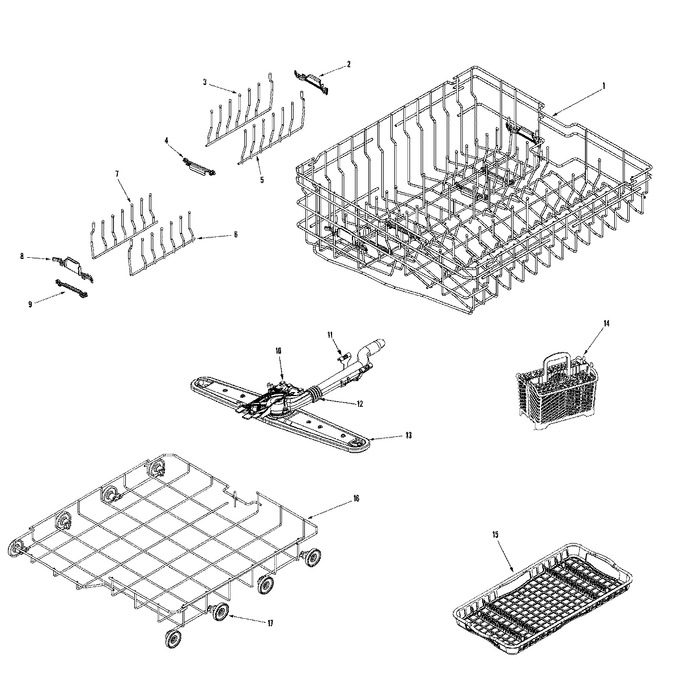

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002903		Rack Assembly (middle)	10	Appelez-nous	-
2	99002736		Latch, Fold Away Tine (rear)	10			$ 7.82
3	Y00000000		See Note For Right Tine Order Front Tine Assembly (part 99003639)	10	Appelez-nous	-
4	WP99002735		Pivot, Fold Away Tine   (Replaces: 99002735)	10			$ 7.14
5	Y00000000		See Note For Left Tine Order Front Tineassembly (part 99003639)	10	Appelez-nous	-
6	Y00000000		See Note For Right Tine Order Rear Tine Assembly (part 99003640)	10	Appelez-nous	-
7	Y00000000		See Note For Right Tine Order Rear Tine Assembly (part 99003640)	10	Appelez-nous	-
8	99002737		Latch, Fold Away Tine (frt)	10			$ 5.70
9	WP99002735		Pivot, Fold Away Tine   (Replaces: 99002735)	10			$ 7.14
10	99002732		Clip, Middle Manifold (frt)	10	Appelez-nous	-
11	99002758		Clip, Middle Manifold (back)	10	Appelez-nous	-
12	99002793		Wash Manifold Assy (middle)	10	Appelez-nous	-
13	99002739		Arm, Wash (middle)	10			$ 59.87
13	99002740		Screw, Truss Head (10-18x.75)	10			$ 6.24
14	6-918651		Split/fit Basket   (Replaces: 99002729)	10			$ 67.59
14	6-918651		Basket, Split/fit   (Replaces: 99002730)	10			$ 67.59
14	99002731		Cover, Split/fit Basket	10	Appelez-nous	-
15	99002748		Basket, Utility	10	Appelez-nous	-
16	99002728		Pan Rack Assembly	10	Appelez-nous	-
17	WP99002780		Wheel Assembly (lwr)   (Replaces: 99002780)	10		Immediately	$ 9.90
