New Model Search:

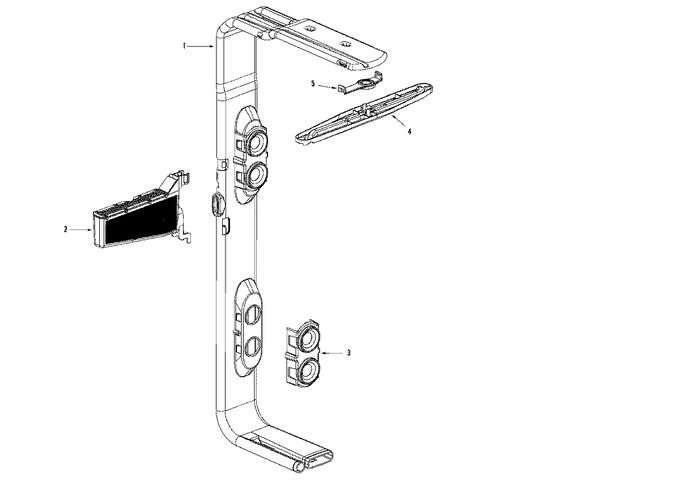

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002738 | Manifold, Main Multi-level | 10 |
|
$ 80.75 | ||||
| 2 | 99002846 | Filter, Over-pressure (w/cvr) | 10 |
|
$ 81.99 | ||||
| 3 | 99002674 | Station, Docking (w/flapper) | 10 |
|
- | ||||
| 4 | 99002676 | Wash Arm, Top (w/retainer) | 10 |
|
- | ||||
| 5 | 99002753 | Retainer, Top Wash Arm | 10 |
|
$ 5.84 |
