SELECT A DIAGRAM

01 - Body


02 - Pump & Motor


03 - Rack Assembly (middle/lwr)


04 - Rack Assembly (upr)


05 - Water Distribution Assembly

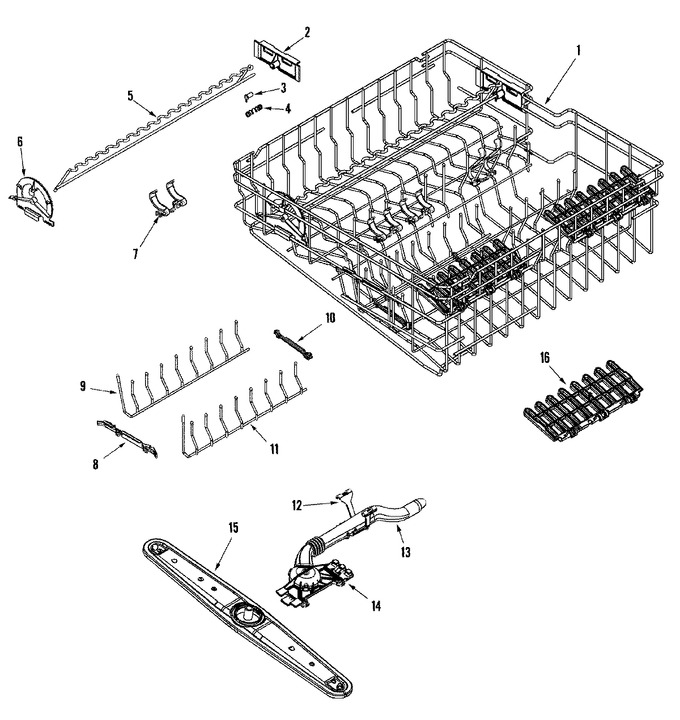

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002902		Rack Assembly (upr)	10	Appelez-nous	-
2	99002712		Varilock (rear)	10			$ 6.51
3	99002714		Cup, Varilock	10			$ 46.60
4	99002715		Spring, Varilock	10	Appelez-nous	-
5	99002713		Support, Varilock	10	Appelez-nous	-
6	99002711		Varilock (frt)	10	Appelez-nous	-
7	99002696		Clip, Cup (blue)	10			$ 92.17
8	WP99002710		Latch, Fold Away Tine   (Replaces: 99002710)	10			$ 7.00
9	99002708		Tine, Fold Away (lt)	10	Appelez-nous	-
10	WP99002709		Pivot, Fold Away Tine   (Replaces: 99002709)	10		Immediately	$ 7.15
11	99002707		Tine, Fold Away (rt)	10	Appelez-nous	-
12	99002670		Clip, Upr Wash Manifold (back)	10	Appelez-nous	-
13	99002679		Wash Manifold Assy (upr)	10	Appelez-nous	-
14	99002669		Clip, Upr Wash Manifold (frt)	10			$ 5.84
15	99002624		Arm, Wash (upr)	10			$ 32.72
16	99002671		Shelf, Cup (upr)	10			$ 21.17

    View Diagram in Separate Window       Print Part List
