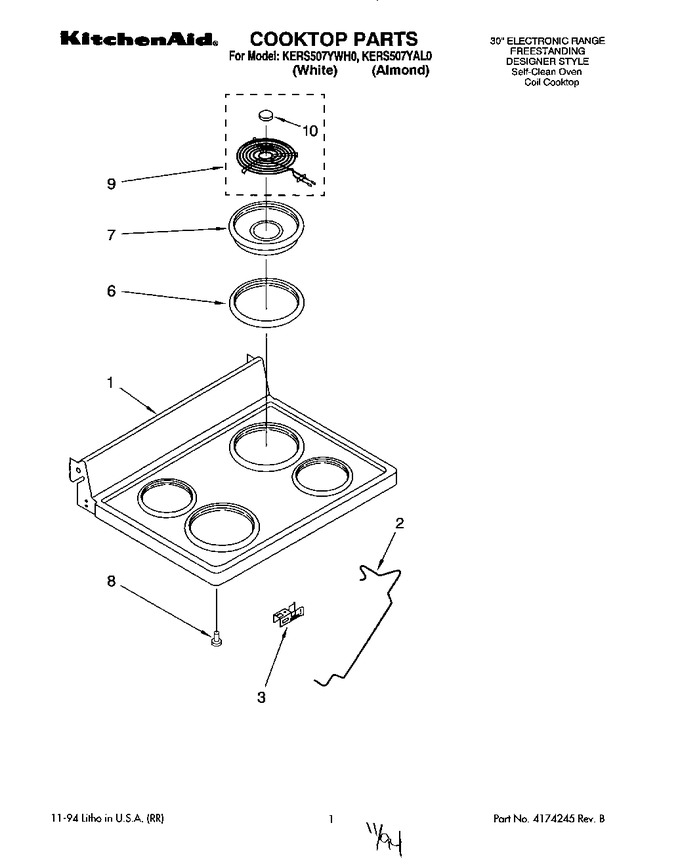

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211942		Cooktop, Coil (white)		Appelez-nous	-
1	4211943		Cooktop, Coil (almond)		Appelez-nous	-
2	9750255		Cooktop Rod		Appelez-nous	-
3	RR117		Clip, Receptacle   (Replaces: 9750735)			Immediately	$ 6.05
3	WP313808		Screw, (4) 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
6	9750505		Trim Ring, Chrome (6``)				$ 37.73
6	9750504		Trim Ring, Chrome (8``)		Appelez-nous	-
7	4211950		Drip Bowl 6``		Appelez-nous	-
7	4211951		Drip Bowl 8``		Appelez-nous	-
8	238614		Bumper, Rubber (2)   (Replaces: 9750969)				$ 72.68
9	PS240-4BK		Element, Surface (coil, 8`` Lf-rr)   (Replaces: 9750810)			Immediately	$ 40.46
9	PS15-4BK		Element, Surface (coil, 6`` Lr-rf)   (Replaces: 9750811)			Immediately	$ 35.96
10	4211952		Medallion, (4)		Appelez-nous	-
	LIT9781161		Use And Care Guide		Appelez-nous	-
	LIT9750520		Instructions, Installation		Appelez-nous	-
	LIT9780945		Label, Instruction (lamp Cover)		Appelez-nous	-
	LIT3183790		Video, K/a T/c Ovens		Appelez-nous	-
	LIT3150693		Cookbook, T/c Ovens		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-
	LIT9780689		Quick Set (oven)		Appelez-nous	-
	LIT9750876		Wiring Diagram		Appelez-nous	-
	LIT9750877		Tech Sheet-k/a		Appelez-nous	-
