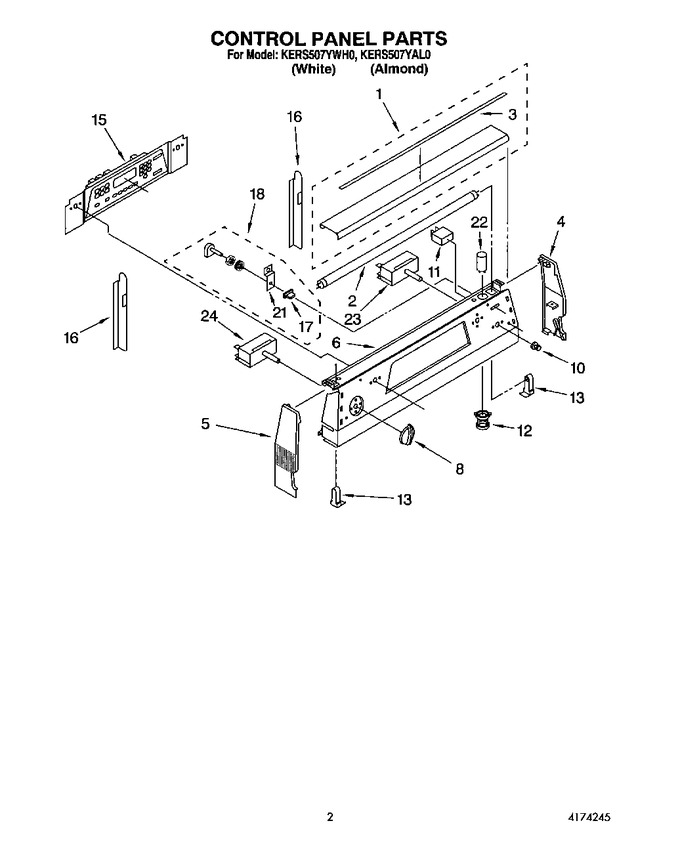

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780580		Lamp Cover (white)		Appelez-nous	-
1	9780581		Lamp Cover (almond)		Appelez-nous	-
2	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45
3	9780332		Lamp Cover Insert (almond)		Appelez-nous	-
3	9780295		Lamp Cover Insert (white)		Appelez-nous	-
4	9780265		End Cap R.h. (screw, (2) 10 X 3/8)		Appelez-nous	-
4	4211933		End Cap R.h. (almond Mdl.)		Appelez-nous	-
4	4211934		End Cap R.h. (white Mdl.)		Appelez-nous	-
5	4211937		End Cap L.h. (white Mdl.)		Appelez-nous	-
5	9780265		End Cap L.h. (screw, (2) 10 X 3/8)		Appelez-nous	-
5	4211936		End Cap L.h. (almond Mdl.)		Appelez-nous	-
6	9780852		Panel, Control (screw, (2) 8 X 3/8)		Appelez-nous	-
6	9780293		Panel, Control (white)		Appelez-nous	-
6	9780329		Panel, Control (almond)		Appelez-nous	-
8	4211913		Knobs, Control (almond Mdl.)				$ 19.39
8	WP9750372FW		Knobs, Control (white Mdl.)   (Replaces: 4211909)				$ 17.99
10	WP9750343		Indicator Lens   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light Module		Appelez-nous	-
12	9750866		Starter, Holder		Appelez-nous	-
13	9750273		Receptacle, Lamp		Appelez-nous	-
15	9750700		Oven Control Assembly (white)		Appelez-nous	-
15	9750699		Oven Control Assembly (almond)		Appelez-nous	-
16	9780655		Brace, Control Pnl		Appelez-nous	-
17	4212112		Button, Light (white)		Appelez-nous	-
17	4212113		Button, Light (almond)		Appelez-nous	-
18	9751110		Switch, Light		Appelez-nous	-
21	9750721		Bracket, Switch		Appelez-nous	-
22	9781118		Starter, Light		Appelez-nous	-
23	WP9750638		Infinite Switch (1400w, Lr-rf)   (Replaces: 9750638)			Immediately	$ 102.50
24	9780268		Screw (8) 8-32 X 3/16		Appelez-nous	-
24	WP9750641		2400w, Lf-rr   (Replaces: 9750641)			Immediately	$ 92.72
