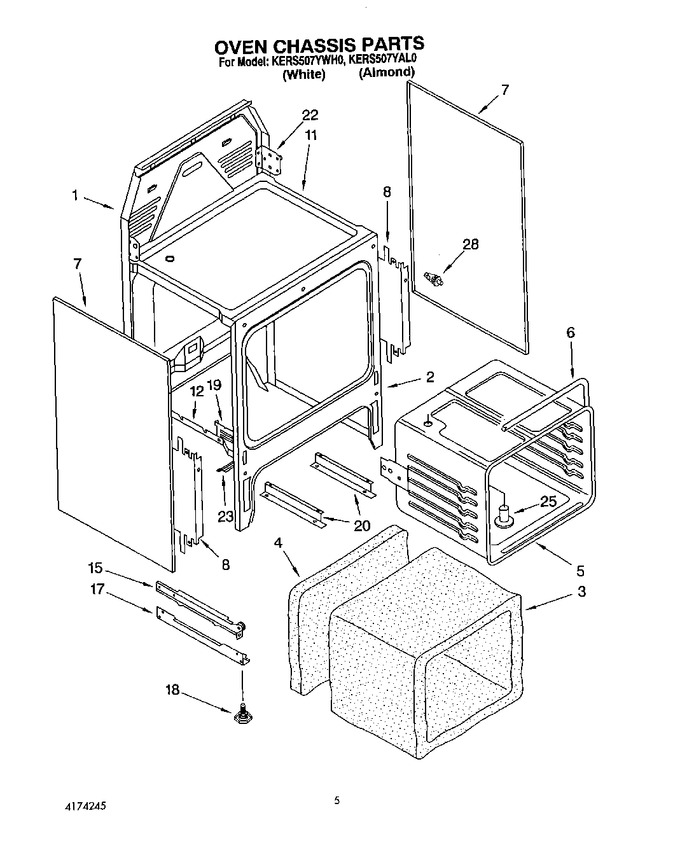

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	4211893		Chassis, Front		Appelez-nous	-
3	9750222		Insulation, Wrap		Appelez-nous	-
4	9750221		Insulation, Rear		Appelez-nous	-
5	4211892		Oven Liner		Appelez-nous	-
6	9750247		Gasket Oven		Appelez-nous	-
7	9780265		Side Panel, Oven (screw (4) 10 X 3/8)		Appelez-nous	-
7	4211896		Side Panel, Oven (white, L Or R)		Appelez-nous	-
7	4211897		Side Panel, Oven (almond, L Or R)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
8	9780265		Screw (2)		Appelez-nous	-
11	4211949		Burner Box		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
15	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
19	9750149		Hinge Receiver		Appelez-nous	-
20	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
20	421771		Support Rail, Pan		Appelez-nous	-
22	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
23	9750491		Bracket, Power Cord		Appelez-nous	-
23	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
25	9750736		Vent Tube 10 X 3/8		Appelez-nous	-
28	8273888A		Anti-tip Kit   (Replaces: 814167)				$ 27.96
28	9750897		Door Switch		Appelez-nous	-
28	CERAMABRYTE		Polish   (Replaces: 3184477)			Immediately	$ 9.95
