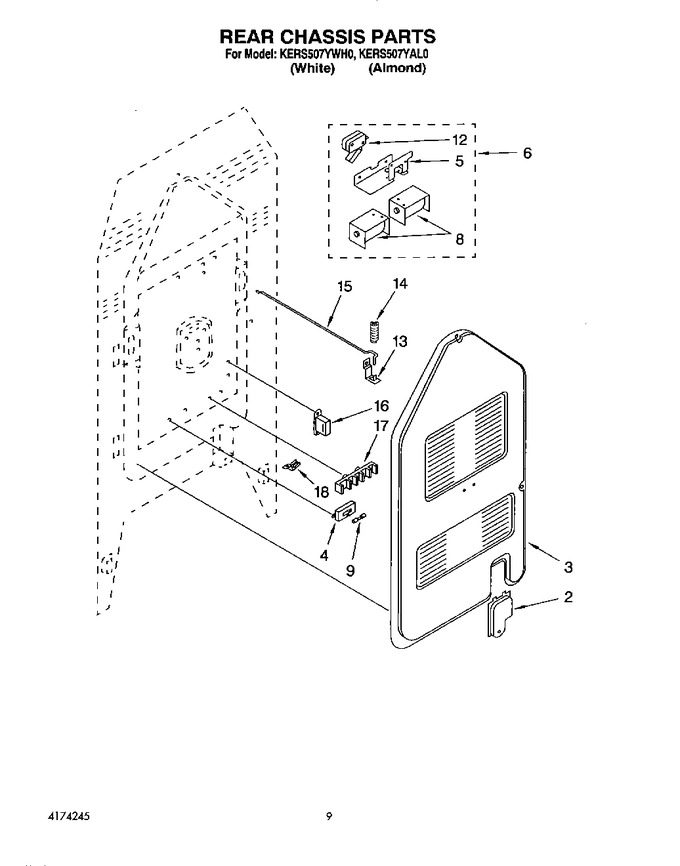

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 9750490 | Cover, Rear Access |
|
- | |||||
| 2 | 9780265 | Screw, (1) 10 X 3/8 |
|
- | |||||
| 3 | 9750245 | Rear Panel |
|
- | |||||
| 3 | 4211813 | Screw, (2) 10 X 3/8 |
|
- | |||||
| 4 | 9750904 | Screw (1) |
|
- | |||||
| 4 | 9750941 | Holder, Fuse |
|
- | |||||
| 5 | 9750526 | Bracket, Lock |
|
- | |||||
| 5 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9750522 | Oven Lock Assembly |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 8 | 9750524 | Solenoid |
|
- | |||||
| 8 | 4211945 | Screw, (2) 10-32 X 5/16 |
|
- | |||||
| 8 | 4211875 | Washer |
|
- | |||||
| 9 | 9750940 | Fuse, 20-amp Xxnote |
|
- | |||||
| 12 | 9750888 | Nut (2) |
|
- | |||||
| 12 | 9750887 | Screw, (2) |
|
- | |||||
| 12 | 9750965 | Switch, Interlock |
|
$ 72.00 | |||||
| 13 | 9750834 | Bracket, Spring |
|
- | |||||
| 14 | 9780265 | Screw, (1) 10 X 3/8 |
|
- | |||||
| 14 | 9750833 | Spring, Door Lock |
|
- | |||||
| 15 | 9750523 | Rod, Lock |
|
- | |||||
| 16 | 4211875 | Washer |
|
- | |||||
| 16 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 16 | 9780881 | Ballast, Lamp |
|
- | |||||
| 17 | WP112432 | Nut, T-block (4) (Replaces: 112432) |
|
$ 7.16 | |||||
| 17 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 17 | 98884 | Screw, (2) 10-16 X 1 |
|
- | |||||
| 18 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 18 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 18 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 18 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 18 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 18 | WP681414 | Screw, Grounding (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 18 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 18 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 18 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 18 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 18 | 978883 | Almond (uncut) |
|
- | |||||
| 18 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 18 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 18 | 285368 | Platinum (uncut) |
|
- | |||||
| 18 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 18 | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 18 | 261582 | Grease |
|
- | |||||
| 18 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 18 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 18 | CERAMABRYTE | Cleaner, Glass (Replaces: 814009) |
|
Immediately | $ 9.95 | ||||
| 18 | 308498 | Ground Strap |
|
- | |||||
| 18 | 313660 | Clip, (1) |
|
- | |||||
| 18 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 18 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 18 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 18 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 18 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 18 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 18 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 18 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 18 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 18 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 18 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 18 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 18 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 18 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 18 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 18 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 18 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 18 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 18 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 18 | 261888 | New Avocado |
|
- | |||||
| 18 | 261886 | Coffee |
|
- | |||||
| 18 | 261890 | Harvest Gold |
|
- | |||||
| 18 | 285365 | Toast |
|
- | |||||
| 18 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- |
