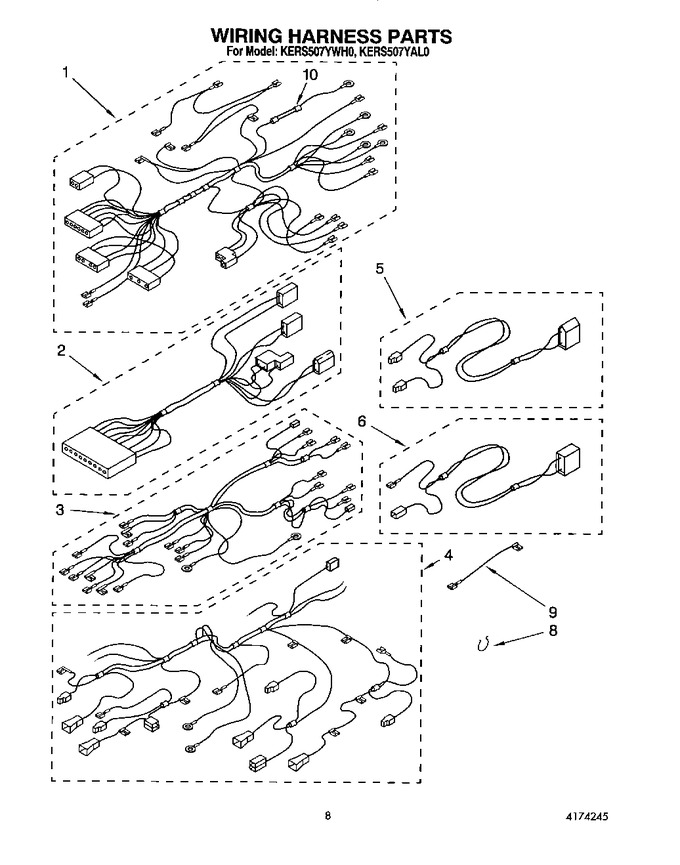

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751151 | Harness, (oven-fused) |
|
- | |||||
| 2 | 9751155 | Harness, (lock Switch) |
|
- | |||||
| 3 | 9751014 | Harness, (cooktop) |
|
- | |||||
| 4 | 9751148 | Harness, Wire (control) |
|
- | |||||
| 5 | 9750376 | Harness, (door) |
|
- | |||||
| 6 | 9751139 | Harness, (probe) |
|
- | |||||
| 8 | 9750984 | Hanger, Cable |
|
- | |||||
| 9 | 9751003 | Lead, Ground |
|
- | |||||
| 10 | 9751369 | Harness, Lead (fused) |
|
- |
