Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
5 2171846 Release Valve Special Order $ 18.99

6 W11223328 Stud Assembly (3)   (Replaces: 2196485) In-Stock Immediately $ 12.66

7 WP3400806 Screw (9)   (Replaces: 8281158) Special Order $ 6.94

8 WP2196483 Stud Assembly (9)   (Replaces: 2196483) Special Order $ 9.32

9 2181796 Ladder, Shelf Appelez-nous -
10 WP3-24004-109 Screw (3)   (Replaces: 3400894) Special Order $ 7.25

11 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98

16 W10777924 Rack, Wine & Egg   (Replaces: 2179404) Special Order $ 21.24

24 2203078 Air Diffuser Assembly Appelez-nous -
29 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 99.14

31 WP2256126 Reservoir   (Replaces: 2196171) Special Order $ 151.97

33 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 16.80

34 2203266 Light Lens Special Order $ 45.86

35 WP2205813 Strap   (Replaces: 2205813) Special Order $ 6.95

37 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

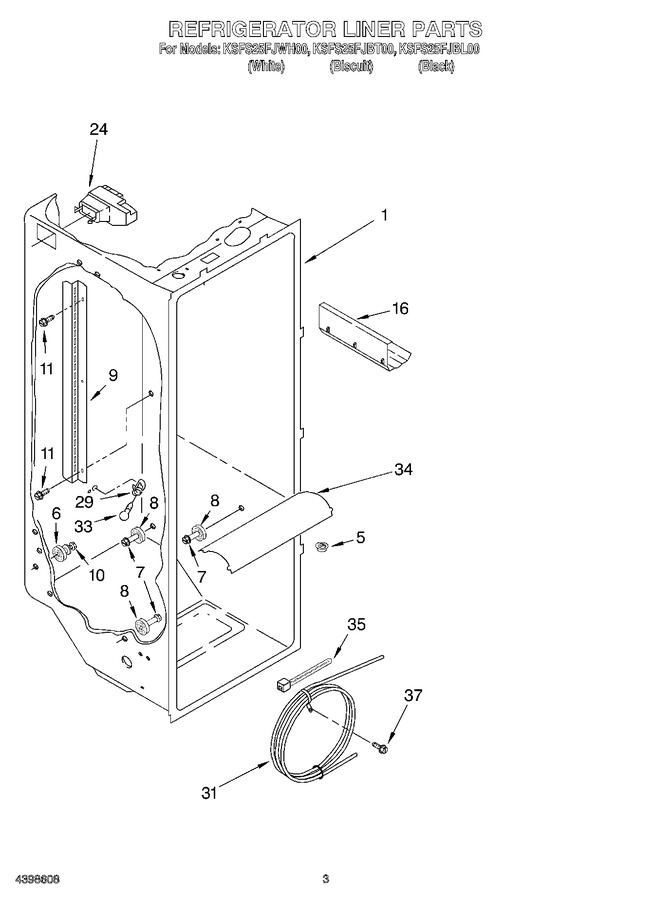

Diagram for KSFS25FJBL00
