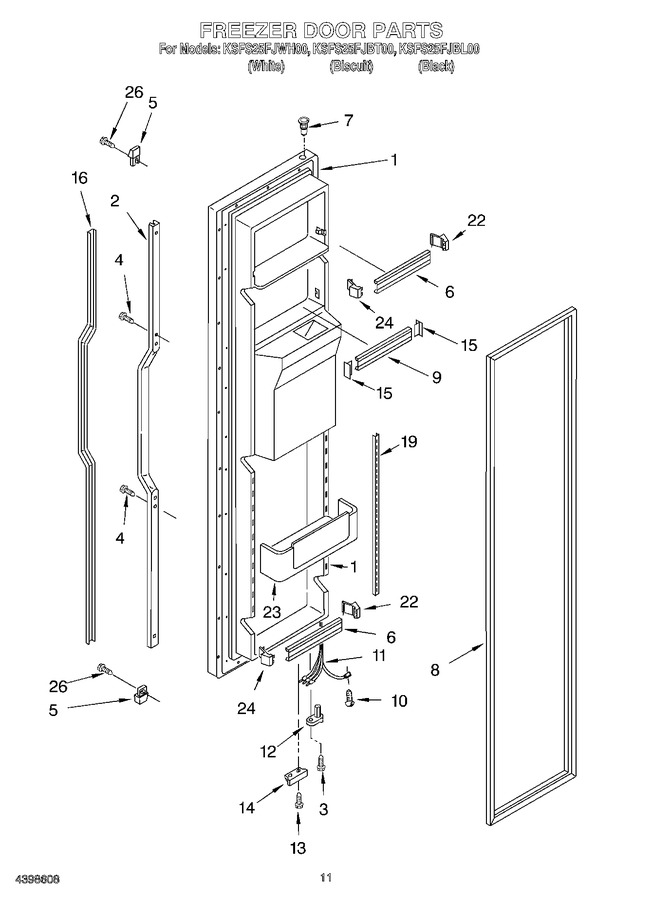

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2209536W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2209536T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2209536B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2203106W		Retainer, Handle (white)		Appelez-nous	-
2	2203106B		Retainer, Handle (black)		Appelez-nous	-
2	2203106T		Retainer, Handle (biscuit)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	2194778B		Endcap, Handle (2) (black)		Appelez-nous	-
5	2194778T		Endcap, Handle (2) (biscuit)		Appelez-nous	-
5	2194778W		Endcap, Handle (2) (white)		Appelez-nous	-
6	2199990		Trim, Door Shelf		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
8	2209512		Door Gasket, Magnetic (service) (mist Beige)		Appelez-nous	-
8	2209514		Door Gasket, Magnetic (service) (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 9.79
11	2203170		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
13	WP489483		Screw   (Replaces: 489420)				$ 9.78
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 10.96
16	2203107W		Insert, Handle (white)		Appelez-nous	-
16	2203107B		Insert, Handle (black)		Appelez-nous	-
16	2203107T		Insert, Handle (biscuit)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 11.30
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
26	WP3400852		Screw   (Replaces: 3400852)				$ 8.86
