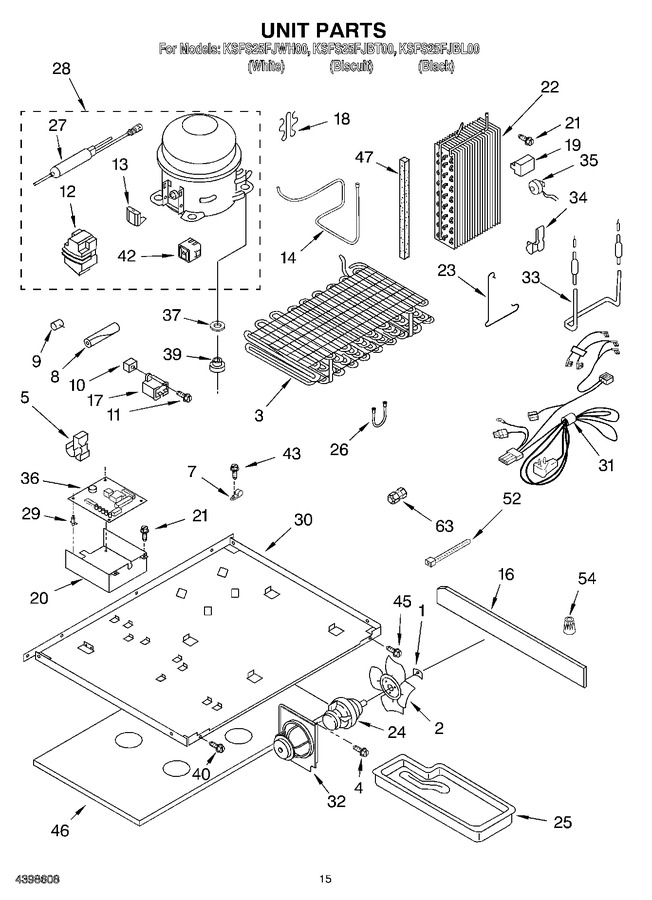

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	2190685		Fan, Blade				$ 52.00
3	2208155B		Condenser Assembly		Appelez-nous	-
4	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 6.47
5	2155658		Clip, Wire		Appelez-nous	-
7	W11456069		Clamp, Tube   (Replaces: 2185788)			Immediately	$ 19.20
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 18.27
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.56
10	509812		Screw Grommet		Appelez-nous	-
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 81.68
13	W11239930		Overload (service Compressor Only)   (Replaces: 4387871)				$ 134.14
14	2313230		Tube Suction   (Replaces: 2199804)		Appelez-nous	-
16	2203020		Extension, Air Baffle		Appelez-nous	-
17	WP4387764		Capacitor (service Compressor Only)   (Replaces: 4387764)				$ 159.34
18	2163787		Clip, Compressor Mounting (4)				$ 7.83
19	2208183		Block, Evaporator		Appelez-nous	-
20	2199929		Housing, Control Board		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 326.99
23	2161324		Clamp		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2199155)			Immediately	$ 79.34
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
26	2199806		Tube, Heat Loop		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 47.31
28	876765		Tube Kit			Immediately	$ 77.70
28	W10309995		Compressor (includes Items 12, 13, 17, 27, & 38) (also Order   (Replaces: 2208176)				$ 603.88
29	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 16.12
30	2199740		Unit Mounting Plate		Appelez-nous	-
31	2188366		Unit, Harness		Appelez-nous	-
32	2208157		Fan, Motor Bracket		Appelez-nous	-
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 45.69
36	2203076		Circuit Board, Dual Temp.				$ 268.33
37	680975		Washer		Appelez-nous	-
39	WP2163786		Grommet (4)   (Replaces: 2163786)				$ 7.16
40	3400515		Screw		Appelez-nous	-
42	8201802		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2188367)				$ 54.14
43	WP489491		Screw   (Replaces: 489491)				$ 6.26
45	3400514		Screw		Appelez-nous	-
46	2203199		Insulation, Mounting Plate		Appelez-nous	-
47	2203160		Side Support		Appelez-nous	-
52	WP2205813		Strap   (Replaces: 2205813)				$ 6.95
54	227991		Wire Connector		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 82.22
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 117.64
63	WP4318044		Union   (Replaces: 2196152)				$ 9.32
63	978026		Valve, Access (5/16``)			Immediately	$ 115.28
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
