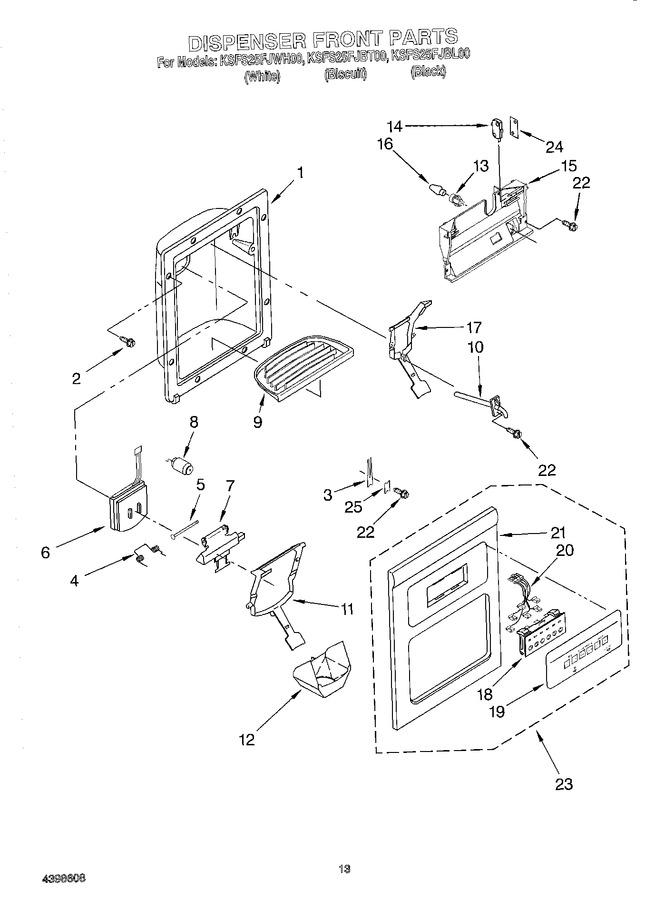

08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.07
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 10.59
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 74.92
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.12
6	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 22.22
7	2206423		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2186860		Grille, Overflow (biscuit)		Appelez-nous	-
9	2180323		Grille, Overflow (white)				$ 30.68
9	WP2180325		Grille, Overflow (black)   (Replaces: 2180325)			Immediately	$ 62.10
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718)				$ 120.72
11	2186850		Lever, Ice Dispenser (biscuit (almond Shadow Pad))		Appelez-nous	-
11	2180259		Lever, Ice Dispenser (white (white Shadow Pad))				$ 42.12
11	2180261		Lever, Ice Dispenser (black (storm Grey Pad))		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 24.87
13	2180200		Lamp Holder				$ 88.79
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 24.61
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 21.95
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 12.29
17	WPW10152859		Lever, Water Dispenser (black (storm Grey Pad))   (Replaces: 2180270)			Immediately	$ 88.13
17	WPW10152858		Lever, Water Dispenser (white (white Shadow Pad))   (Replaces: 2180268)			Immediately	$ 94.14
17	WPW10152858		Lever, Water Dispenser (biscuit (almond Shadow Pad))   (Replaces: 2186852)			Immediately	$ 94.14
18	WP2180236		Switch Assembly (also Order No. 19)   (Replaces: 2180236)				$ 246.86
19	2186515W		Overlay, Front Cover (white)		Appelez-nous	-
19	2186515T		Overlay, Front Cover (biscuit)		Appelez-nous	-
19	2186515B		Overlay, Front Cover (black)		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2196199)				$ 80.71
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.06
23	2186511B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2186511T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	2186511W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 10.50
