SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit

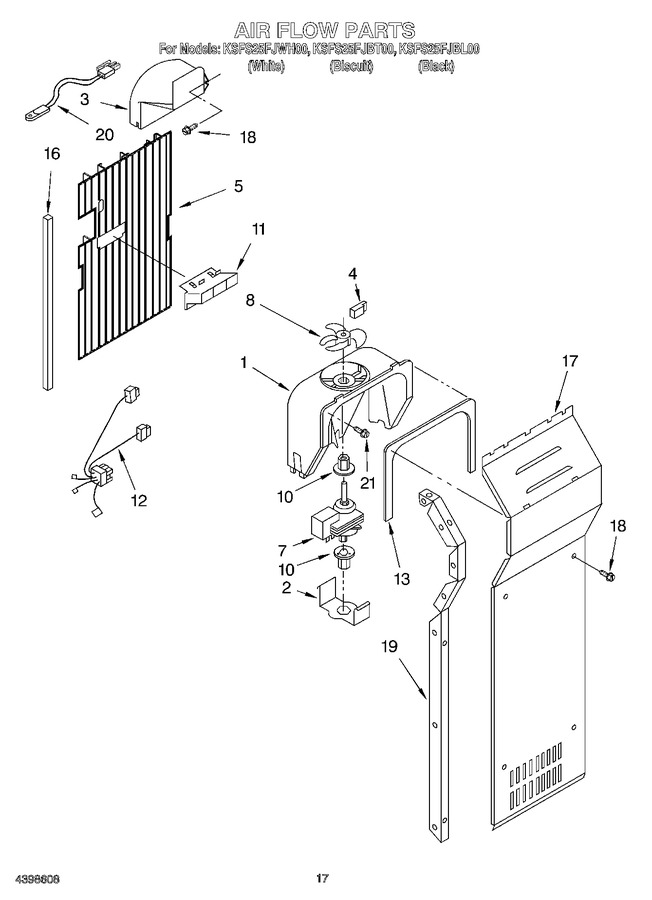

10 - Air Flow


11 - Control


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 100.77
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
4	2208184		Block, Fan Scroll		Appelez-nous	-
5	2199931		Air Duct Freezer		Appelez-nous	-
7	4389144		Fan Motor   (Replaces: 2162404)			Immediately	$ 70.75
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 6.99
11	2182146		Duct, Icemaker				$ 88.84
12	2203117		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.01
16	2210780		Gasket		Appelez-nous	-
17	2203122		Cover, Evaporator		Appelez-nous	-
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
19	2199922		Evaporator, Cover Rail (right)		Appelez-nous	-
19	2199923		Evaporator, Cover Rail (left)		Appelez-nous	-
20	2199723		Thermistor		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 6.98

    View Diagram in Separate Window       Print Part List
