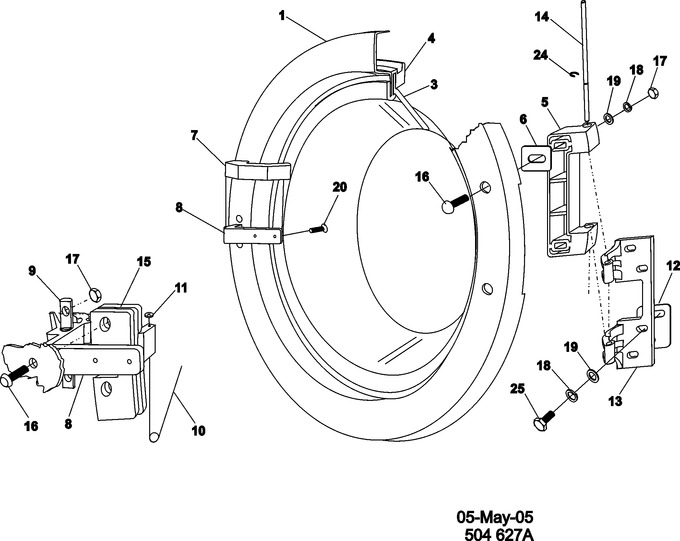

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001363		Ring, Door	10	Appelez-nous	-
003	23001364		Glass, Door	10	Appelez-nous	-
004	23001365		Rubber, Door Glass	10	Appelez-nous	-
005	23001366		Plate, Hinge	10	Appelez-nous	-
006	23001166		Shim, Hinge Plate	10			$ 2,741.81
007	23003860		Plate, Handle Ornamental	10	Appelez-nous	-
008	23003858		Handle	10	Appelez-nous	-
009	23001168		Shaft, Lever	10	Appelez-nous	-
010	23001169		Spring, Handle Lever	10	Appelez-nous	-
011	23002499		Washer	10	Appelez-nous	-
012	23001368		Shim, Hinge Base	10	Appelez-nous	-
013	23001171		Base, Hinge	10	Appelez-nous	-
014	23001172		Shaft, Door Hinge	10	Appelez-nous	-
015	23001370		Handle, Lever Plate	10	Appelez-nous	-
016	23001175		Screw (m6x20 Stainless Steellu	10	Appelez-nous	-
017	23002280		Nut M6	10	Appelez-nous	-
018	23002130		Washer (6)	10	Appelez-nous	-
019	23002424		Washer	10	Appelez-nous	-
020	23003793		Bolt M4x12	10	Appelez-nous	-
024	23001181		Retaining Ring (dia. 8)	10	Appelez-nous	-
025	23002279		Bolt (m6x20)	10	Appelez-nous	-
