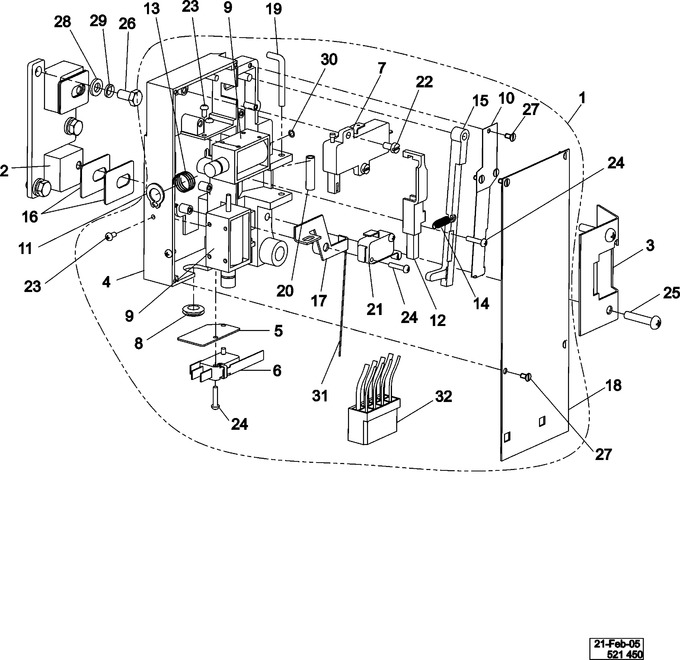

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y23002897		Lock, Door (complete)	10	Appelez-nous	-
002	23001156		Spacer, Lock	10	Appelez-nous	-
004	Y23002898		Ground, Plate Lock	10	Appelez-nous	-
005	23003863		Plate, Microswitch	10	Appelez-nous	-
006	23001145		Microswitch, Long Lever	10	Appelez-nous	-
007	23001135		Bimetal, Actuator (230v)	10	Appelez-nous	-
008	23002479		Passage, Cable	10	Appelez-nous	-
009	23001146		Coil (240v)	10	Appelez-nous	-
010	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
011	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
012	23001140		Bar, Locking	10	Appelez-nous	-
013	23002903		Spring, Locking Part	10	Appelez-nous	-
014	23002900		Spring, Locking Part	10	Appelez-nous	-
015	23002899		Handle, Locking Part	10	Appelez-nous	-
016	23001368		Shim, Hinge Base	10	Appelez-nous	-
017	NLA		Level, Opening	10	Appelez-nous	-
018	23001130		Plate, Cover (stnls Steel)	10	Appelez-nous	-
019	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
020	23001143		Lock Tube (dia. 4x23.5 Stnls)	10	Appelez-nous	-
021	23002337		Microswitch W/roller Arm	10	Appelez-nous	-
022	23003114		Screw (m4x8) Lu	10	Appelez-nous	-
023	23002869		Screw (m3x6)	10	Appelez-nous	-
024	23003115		Screw (m3x14)	10	Appelez-nous	-
025	23003784		Bolt M5x25 Sts Stl	10	Appelez-nous	-
026	23002422		Screw (m6 X 12)	10	Appelez-nous	-
027	23003113		Screw (m3x6)	10	Appelez-nous	-
028	23002424		Washer	10	Appelez-nous	-
029	23002130		Washer (6)	10	Appelez-nous	-
030	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
031	23001152		Cord, Opening   (Replaces: 23002901)	10		Immediately	$ 458.78
032	23002905		Wiring, Door Lock	10	Appelez-nous	-
