01 - Base Frame


02 - Cabinet


03 - Top Cover


04 - Door


05 - Door Lock


06 - Control Panel


07 - Coin Vault


08 - Soap Box, Drain And Hose Asy


09 - Basket And Outer Tub


10 - Motor And Drive Asy


11 - Trunnion And Bearings


12 - Rear Panel And Valves

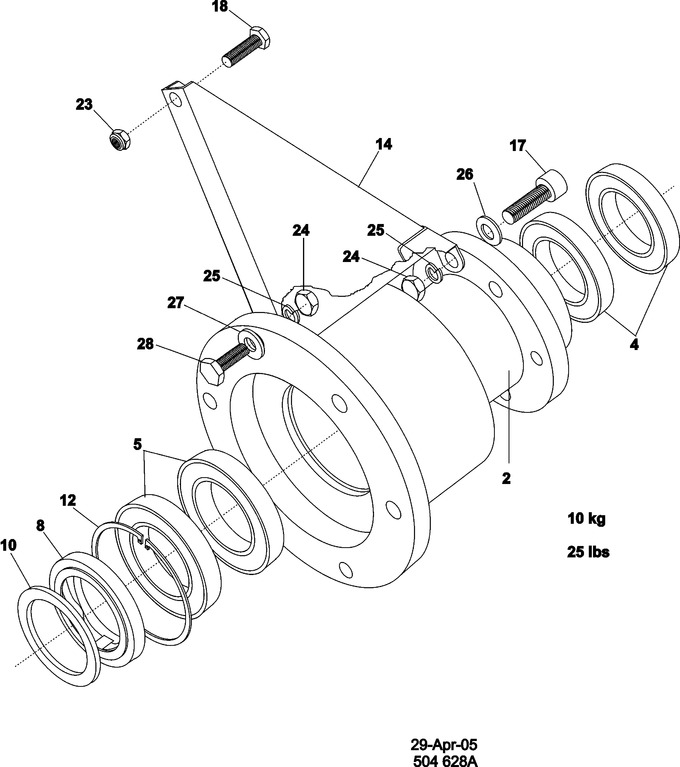

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	NLA		Housing, Bearing	10	Appelez-nous	-
004	23001232		Bearing (rear)	10	Appelez-nous	-
005	23001231		Bearing (6209 2rs C3)	10	Appelez-nous	-
008	23001234		Seal, Water	10	Appelez-nous	-
010	23001233		Ring, Seal	10	Appelez-nous	-
012	23001235		Ring, Internal Snap	10			$ 2,741.81
014	23003553		Spoke	10	Appelez-nous	-
017	23003808		Bolt M 10x40	10	Appelez-nous	-
018	23002646		Screw (m8 X 40)	10	Appelez-nous	-
023	23001607		Nut (m8)	10	Appelez-nous	-
024	23001661		Nut M10   (Replaces: 23003764)	10			$ 15.61
025	23002654		Washer (10)	10	Appelez-nous	-
026	23003788		Washer	10	Appelez-nous	-
027	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
028	23002940		Screw (m10x35)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
