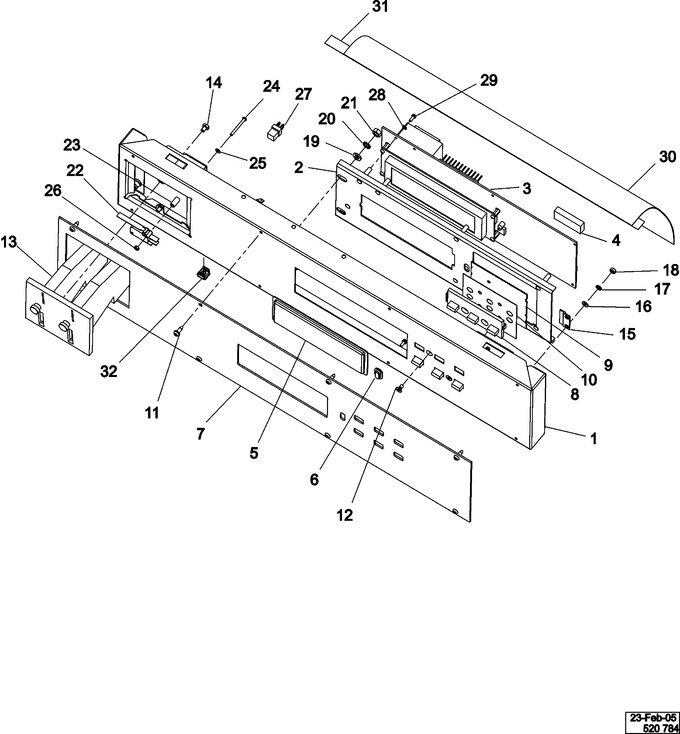

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23004302 | Bracket, Control Panel Lu | 10 |
|
- | ||||
| 002 | 23004117 | Bracket, Control Board Lu | 10 |
|
- | ||||
| 003 | 23004118 | Control Board | 10 |
|
- | ||||
| 004 | 23003992 | Mcg Eeprom Chip Lu | 10 |
|
- | ||||
| 005 | 23004119 | Display Lens | 10 |
|
- | ||||
| 006 | 23004120 | Lens, Ir | 10 |
|
- | ||||
| 007 | 23004304 | Control Panel, Facia Mfr25 | 10 |
|
- | ||||
| 008 | 23003646 | Buttons, Row Of 3 | 10 |
|
- | ||||
| 009 | 23004122 | Key Board | 10 |
|
- | ||||
| 010 | 23004123 | Hold Plate | 10 |
|
- | ||||
| 011 | WPW10131119 | Screw (Replaces: 23003810) | 10 |
|
$ 6.26 | ||||
| 012 | 8173901 | Screw (Replaces: 23003811) | 10 |
|
- | ||||
| 013 | 23004075 | Dual Coin Drop Canada | 10 |
|
- | ||||
| 013 | 23004124 | Coin Drop 25 Us | 10 |
|
- | ||||
| 013 | 23004167 | Optic Switch | 10 |
|
- | ||||
| 014 | 23003797 | Bolt | 10 |
|
- | ||||
| 015 | 23004125 | Z-bracket | 10 |
|
- | ||||
| 016 | 23002438 | Washer (m6) | 10 |
|
- | ||||
| 017 | 23002950 | Lock Washer M4 | 10 |
|
- | ||||
| 018 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 019 | 23003778 | Washer 12 | 10 |
|
- | ||||
| 020 | 23002756 | Washer | 10 |
|
- | ||||
| 021 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 022 | 23001145 | Microswitch, Long Lever | 10 |
|
- | ||||
| 023 | 23003653 | Tube | 10 |
|
- | ||||
| 024 | 23003652 | Screw, Switch | 10 |
|
- | ||||
| 025 | 23003654 | Washer (m3) | 10 |
|
- | ||||
| 026 | 23002958 | Nut M3 | 10 |
|
- | ||||
| 027 | 23004127 | Emeregency Stop Interconnect | 10 |
|
- | ||||
| 028 | 23002865 | Lock Washer M3 | 10 |
|
- | ||||
| 029 | 23004061 | Screw M3 X 8 | 10 |
|
- | ||||
| 030 | NLA | Cover, Plastic | 10 |
|
- | ||||
| 031 | 23004126 | Double Side Tape | 10 |
|
- | ||||
| 032 | 23002455 | Nut, Rapid (m6) | 10 |
|
- | ||||
| 033 | 23004513 | Kit,convert Pd To Pn | 10 |
|
- |
