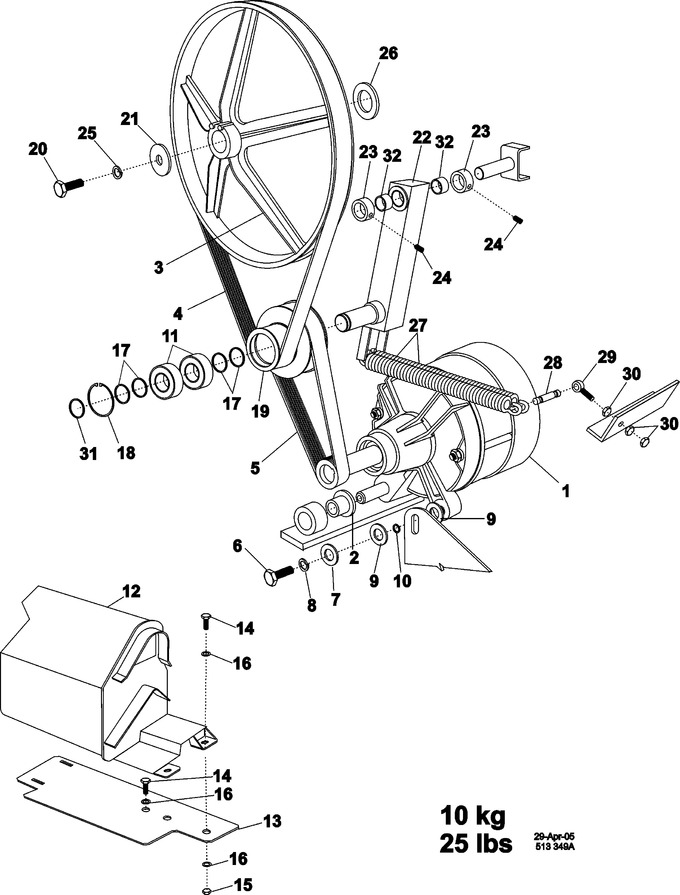

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004077		Motor 240v 3phase	10	Appelez-nous	-
002	23004307		Bushing Rubber, Motor	10	Appelez-nous	-
003	23004308		V-pulley	10			$ 247.79
004	23004322		Belt	10			$ 137.72
005	23004323		Belt	10	Appelez-nous	-
006	23004310		Bolt 5/16 X 1 1/4	10	Appelez-nous	-
007	23002437		Washer M8	10	Appelez-nous	-
008	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
009	23004324		Plastic Washer	10	Appelez-nous	-
010	23004325		Plastic Washer	10	Appelez-nous	-
011	23004331		Bearing	10	Appelez-nous	-
012	23004076		Inverter Ako .6kw 1phase Lu	10	Appelez-nous	-
013	23004312		Bracket, Motor Control	10			$ 30.77
014	23003714		Bolt M5x16	10	Appelez-nous	-
015	W10244602		Nut (m4) Lu   (Replaces: 23002452)	10			$ 11.90
016	23002862		Washer (5,3)	10	Appelez-nous	-
018	23004333		Ring, Retaining 42	10	Appelez-nous	-
019	23004326		Pulley	10	Appelez-nous	-
020	23003332		Bolt (m12-1.75 X 25)	10	Appelez-nous	-
021	23001282		Washer (dia. 37 X 13 X 3)	10			$ 15.36
022	23004327		Beam Complete	10	Appelez-nous	-
023	23002925		Shaft, Sliding Ring Motor	10	Appelez-nous	-
024	23002930		Screw, Socket Set (m6x6)	10	Appelez-nous	-
025	23002658		Washer (12)	10	Appelez-nous	-
026	23004328		Ring Of Pulley	10	Appelez-nous	-
027	23001413		Motor, Spring	10	Appelez-nous	-
028	23004330		Pin	10			$ 49.25
029	23004255		Bolt M8x80	10	Appelez-nous	-
030	NLA		Nut M8	10	Appelez-nous	-
031	23004332		Ring, Retaining	10	Appelez-nous	-
032	23004329		Insertion	10	Appelez-nous	-
