Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23004050 Frame, Welded Appelez-nous -
5 23004222 Bolt M8x70 Appelez-nous -
6 23001203 Washer M8.4x24x2 Appelez-nous -
7 23002358 Washer, Lock M8 Appelez-nous -
8 23001607 Nut M8 Appelez-nous -
9 23004223 Tub Band Appelez-nous -
10 23002657 Washer M13 Appelez-nous -
11 23004146 Washer 12 Appelez-nous -
12 23003676 Nut M12 Appelez-nous -
13 23001294 Screw M12x70 Appelez-nous -
14 23002428 Clip, Cable Appelez-nous -
15 23001609 Bolt M4x12 Appelez-nous -
16 23002280 Nut M6 Appelez-nous -
17 23003767 Washer M6.4 Appelez-nous -
18 23002425 Washer, Lock M6 Special Order $ 473.30

19 23002658 Washer M12 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

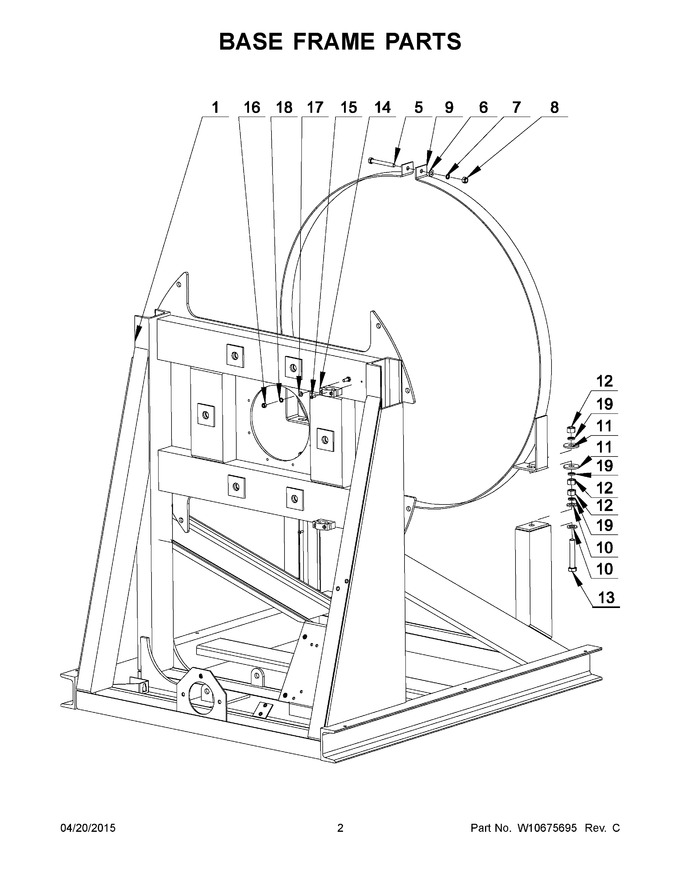

Diagram for MFR60PNCTS
