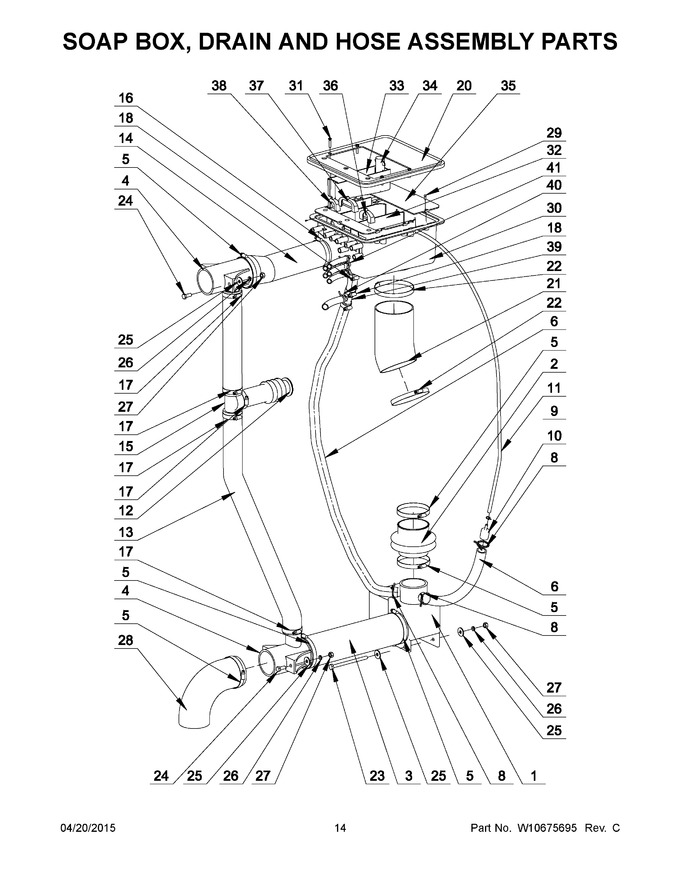

08 - Soap Box, Drain And Hose Assembly Parts


09 - Control Panel Parts


10 - Tub And Drum Parts


11 - Drive Parts


12 - Water Valve And Rear Panel Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23001244		Drain Valve (complete)				$ 2,768.25
2	23001245		Tub To Drain Hose				$ 59.66
3	23001248		Hose, Drain		Appelez-nous	-
4	23001253		Large T		Appelez-nous	-
5	WP696392		Hose Clamp (70-90)   (Replaces: 23001258)				$ 7.31
6	23001246		Lower Hose, Pressure Switch		Appelez-nous	-
8	WP285655		Hose Clamp   (Replaces: 23001259)			Immediately	$ 7.55
9	WP596669		Clamp, Corbin (a5.5)   (Replaces: 23001257)			Immediately	$ 7.56
10	23001260		Pressure Switch Hose Fitting		Appelez-nous	-
11	23001252		Upper Hose, Pressure Switch		Appelez-nous	-
12	23001250		Corrugated Vent Hose		Appelez-nous	-
13	23001251		Lower Overflow Hose		Appelez-nous	-
14	23004241		Hopper To T-hose		Appelez-nous	-
15	23001255		Small T		Appelez-nous	-
16	23001256		Hose Clamp (60-80)		Appelez-nous	-
17	23001750		Hose Clamp (40-60)		Appelez-nous	-
18	WP616099		Hose Clamp (20-32)   (Replaces: 23001262)			Immediately	$ 7.03
20	23001015		Soap Hopper Gasket		Appelez-nous	-
21	W10666434		Soap Hopper Tub Hose		Appelez-nous	-
22	WP696392		Hose Clamp (90-110)   (Replaces: 23001025)				$ 7.31
23	23002908		Bolt M8x120		Appelez-nous	-
24	23001264		Bolt M8x20		Appelez-nous	-
25	23002437		Washer M8		Appelez-nous	-
26	23002358		Washer, Lock M8		Appelez-nous	-
27	23003766		Nut M8		Appelez-nous	-
28	23002015		Drain Elbow		Appelez-nous	-
29	23003782		Screw				$ 3.66
30	23001016		External Soap Hopper		Appelez-nous	-
31	23003484		Bolt M5x16				$ 5.27
32	23001017		Soap Hopper Insert		Appelez-nous	-
33	23001019		Fabric Softener Insert		Appelez-nous	-
34	23001018		Syphon Hose		Appelez-nous	-
35	23001020		Insert Retainer		Appelez-nous	-
36	23001021		Prewash Diverter		Appelez-nous	-
37	23001022		Mainwash Diverter		Appelez-nous	-
38	23001023		Fabric Softener Diverter		Appelez-nous	-
39	W10304864		T Fitting		Appelez-nous	-
40	WP596669		Hose Clamp   (Replaces: W10286346)			Immediately	$ 7.56
41	W10666435		Hose Clamp		Appelez-nous	-
