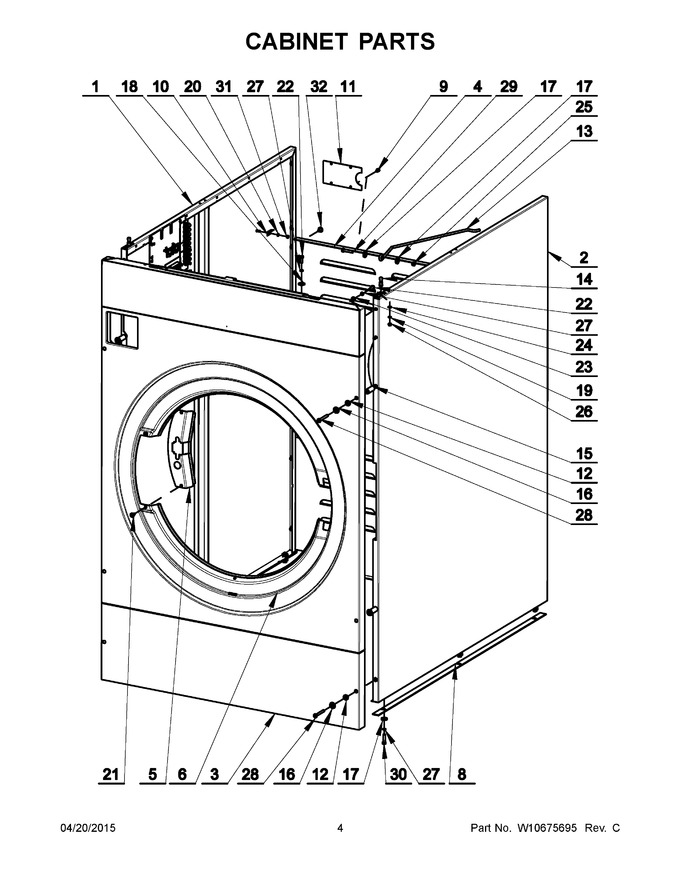

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23004224 | Panel, Side Lh |
|
- | |||||
| 2 | 23004225 | Panel, Side Rh |
|
- | |||||
| 3 | 23004228 | Panel, Service |
|
- | |||||
| 4 | 23004229 | Panel, Back |
|
- | |||||
| 5 | W10665809 | Door Lock Cover Complete |
|
- | |||||
| 6 | W10665810 | Front Panel Opl |
|
- | |||||
| 8 | 23004231 | Shim |
|
- | |||||
| 9 | 23004480 | Screw St4.8x13 |
|
- | |||||
| 10 | 23004232 | Bracket, Cable |
|
- | |||||
| 11 | W10666025 | Cover For Steam Heating |
|
- | |||||
| 12 | 23002458 | Washer M15x7x2 |
|
- | |||||
| 13 | 23002454 | Self Sticking Cable Clip |
|
- | |||||
| 14 | 23001332 | Alignment Pin |
|
- | |||||
| 15 | 23002860 | Tube, Distance |
|
- | |||||
| 16 | 23002457 | Washer M6 |
|
- | |||||
| 17 | 23001309 | Washer M6.4x17x3 |
|
- | |||||
| 18 | 23003012 | Washer M6 |
|
- | |||||
| 19 | 23002836 | Washer M5 |
|
- | |||||
| 20 | 23002950 | Washer, Lock M4 |
|
- | |||||
| 21 | W10666026 | Bolt M5x12 |
|
- | |||||
| 22 | 23004114 | Bolt M6x16 (Replaces: 23002461) |
|
- | |||||
| 23 | 23003774 | Washer M6 X 4 |
|
- | |||||
| 24 | 23002862 | Washer M5.3 |
|
- | |||||
| 25 | 23001310 | Nut M6 |
|
- | |||||
| 26 | 23003716 | Nut M5 |
|
- | |||||
| 27 | 20007283 | Washer M6 (Replaces: 23002440) |
|
$ 504.91 | |||||
| 28 | 23002456 | Screw M6x50 |
|
- | |||||
| 29 | 23002463 | Bolt M6x30 |
|
- | |||||
| 30 | 23002861 | Bolt M6 X 25 |
|
- | |||||
| 31 | 23003666 | Nut M4 |
|
- | |||||
| 32 | W10286289 | Bolt M6x10 |
|
- | |||||
| NI | W10510677 | Door Lock Wiring |
|
- | |||||
| NI | W10666029 | Main Wiring |
|
- | |||||
| NI | W10666027 | Bolt M6x10 |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
