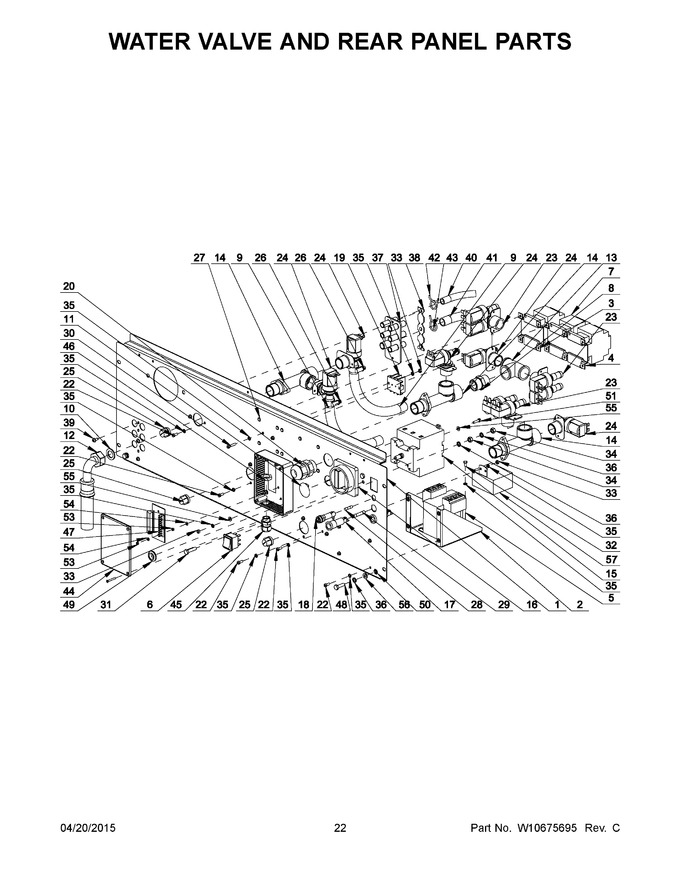

12 - Water Valve And Rear Panel Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667694		Rear Panel		Appelez-nous	-
2	23004316		Bracket, Transformer		Appelez-nous	-
3	23004161		Bracket, Contactor		Appelez-nous	-
4	W10667697		Bracket, Double Contactor		Appelez-nous	-
5	W10286352		Transformer		Appelez-nous	-
6	23004406		Filter, Mcg		Appelez-nous	-
7	23003750		Contactor Lc1 D09m7		Appelez-nous	-
8	23001482		Nipple (3/4" Pipe Thread)				$ 747.91
9	23001507		Hose, Inlet		Appelez-nous	-
10	23002921		Washer, Fill Hose		Appelez-nous	-
11	23002243		Plug		Appelez-nous	-
12	23001523		Hose, Connection		Appelez-nous	-
13	23001485		Tee (3/4" Pipe Thread)		Appelez-nous	-
14	23002924		Metal T 3/4		Appelez-nous	-
15	23003503		Main Switch 80a (230v)		Appelez-nous	-
16	23003497		Main Switch Knob		Appelez-nous	-
17	23002210		Fuse Holder (6x32mm)		Appelez-nous	-
18	23001462		Fuse Holder (5x20mm)		Appelez-nous	-
19	23002959		Electric Heat Terminal Board		Appelez-nous	-
20	23002211		Swivel, Cable		Appelez-nous	-
22	23002423		Screw M4x10		Appelez-nous	-
23	23001455		2-way Inlet Valve		Appelez-nous	-
24	23001534		Valve, One Way (230v 50/60hz)				$ 72.83
25	23002922		Filter Screen		Appelez-nous	-
26	WP596669		Hose Clamp (12-22)   (Replaces: 23001506)			Immediately	$ 7.56
27	23004105		Rivet M4x6		Appelez-nous	-
28	23002919		Fuse 0.5a 250v		Appelez-nous	-
29	WP22001555		Fuse 1a 500v   (Replaces: 22001555)			Immediately	$ 27.33
30	23002807		Bolt M4x20		Appelez-nous	-
31	23002806		Bolt M6x25		Appelez-nous	-
32	23001682		Bolt M4x8		Appelez-nous	-
33	23001014		Nut M4		Appelez-nous	-
34	23001312		Nut M6		Appelez-nous	-
35	23002950		Washer, Lock M4		Appelez-nous	-
36	23001734		Washer, Lock M6		Appelez-nous	-
37	W10223169		Chemical Injection Manifold		Appelez-nous	-
38	14227179		Manifold Mounting Plate		Appelez-nous	-
39	WPW10131119		Screw M4x13   (Replaces: 23003810)				$ 6.26
40	23002193		Small Chemical Hose D10/14		Appelez-nous	-
41	W10223170		Hose		Appelez-nous	-
42	WP596669		Hose Clamp   (Replaces: W10286344)			Immediately	$ 7.56
43	WP596669		Hose Clamp   (Replaces: W10286346)			Immediately	$ 7.56
44	W10667712		Plate		Appelez-nous	-
45	23004396		Small Strain Relief M16		Appelez-nous	-
46	23004398		Small Strain Relief Nut M16		Appelez-nous	-
47	W10286355		Led Board Mc5		Appelez-nous	-
48	23002462		Bolt M6x20				$ 5.14
49	23002834		Grommet				$ 2,242.58
50	23004092		Nut M6		Appelez-nous	-
51	23004095		Bolt M4x16		Appelez-nous	-
53	23002958		Nut M3		Appelez-nous	-
54	23003654		Washer M3.2		Appelez-nous	-
55	23002438		Washer M4.3		Appelez-nous	-
56	23002424		Washer M6.4		Appelez-nous	-
57	23003665		Filter		Appelez-nous	-
15A	23003502		Main Switch 63a (steam Heating ? 230v/400v)		Appelez-nous	-
47A	W10163905		Signal Board Mc4		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	23002505		Grounding Plate		Appelez-nous	-
NI	W10357134		Serial Tag Cover		Appelez-nous	-
