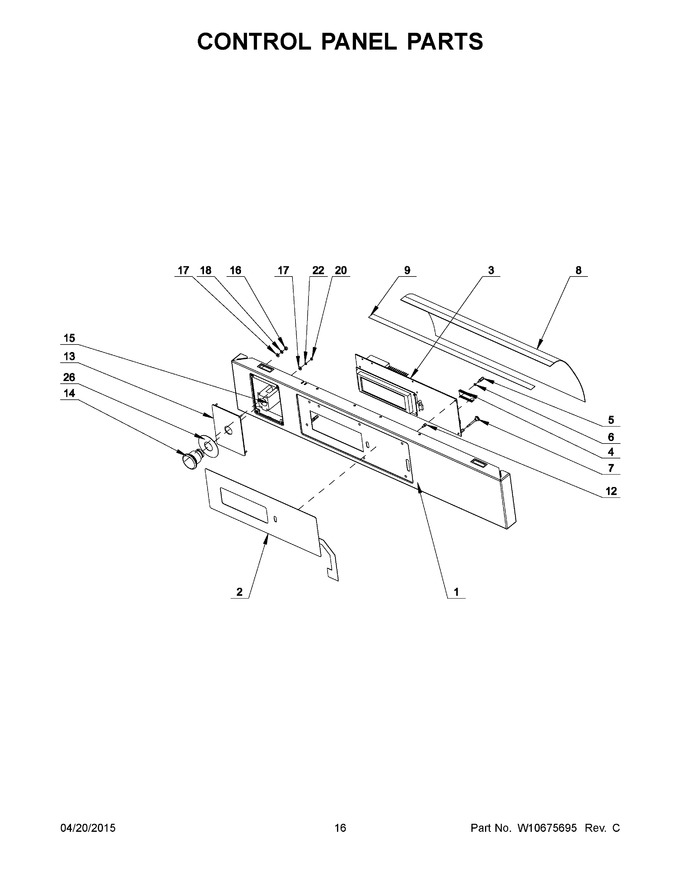

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10675718		Bracket, Control		Appelez-nous	-
2	23004133		Membrane Switch		Appelez-nous	-
3	23003991		Mc4 Opl Ccu		Appelez-nous	-
4	W10165009		Mc4 Opl Program Chip				$ 57.52
5	W10675720		Spacer M3x12x7		Appelez-nous	-
6	23002870		Washer, Lock M3		Appelez-nous	-
7	23003872		Screw, Thumb		Appelez-nous	-
8	23002877		Shield, Rain		Appelez-nous	-
9	23004126		Double-sided Tape		Appelez-nous	-
12	23004134		Spacer M3x5x3		Appelez-nous	-
13	W10286297		Stop Switch Plate		Appelez-nous	-
14	23004136		Stop Switch Button		Appelez-nous	-
15	23004137		Stop Switch		Appelez-nous	-
16	23003666		Nut M4		Appelez-nous	-
17	23002438		Washer M4.3		Appelez-nous	-
18	23002950		Washer, Lock M4		Appelez-nous	-
20	23002958		Nut M3		Appelez-nous	-
22	23002865		Washer, Lock M4		Appelez-nous	-
26	23002330		Stop Switch Button		Appelez-nous	-
3A	W10286300		Mc5 Opl Ccu		Appelez-nous	-
4A	W10304859		Mc5 Opl Program Chip		Appelez-nous	-
