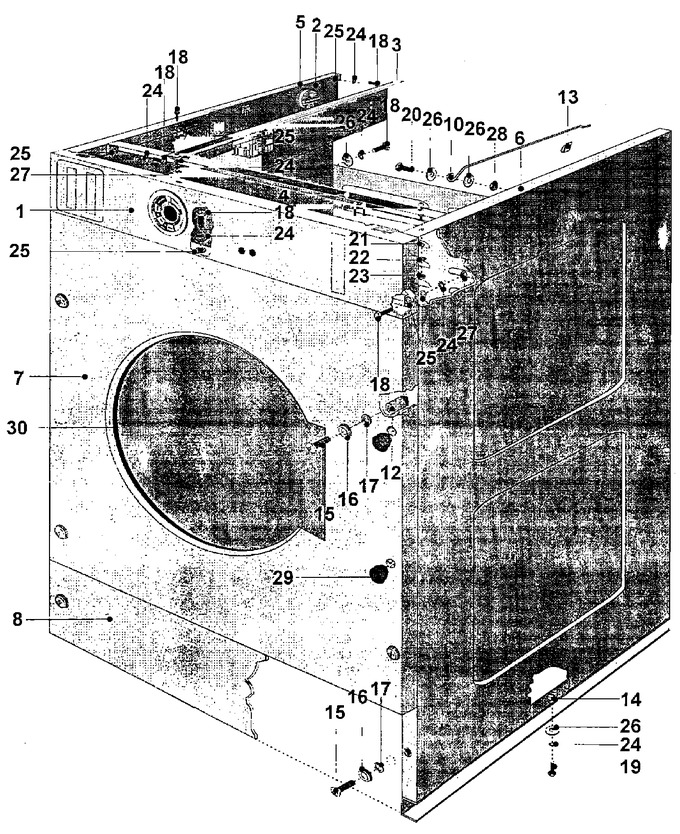

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003429		Panel, Control	10	Appelez-nous	-
001	23003638		Panel, Control	10	Appelez-nous	-
002	23002442		Box, Electrical Components	10	Appelez-nous	-
003	23002443		Holder, Box	10	Appelez-nous	-
004	23002445		Beam, Cross	10	Appelez-nous	-
005	23002446		Panel, Side (lt)	10	Appelez-nous	-
006	23002447		Panel, Side (rt)	10	Appelez-nous	-
007	23002448		Panel (frt)	10	Appelez-nous	-
008	23002449		Panel (service)	10	Appelez-nous	-
009	NLA		Back Plate / Panel	10	Appelez-nous	-
010	23001330		Support Rod, Top Panel	10	Appelez-nous	-
011	23001332		Pin, Srv	10	Appelez-nous	-
012	23001331		Spacer, Panel	10	Appelez-nous	-
013	NLA		Hook, Stick	10	Appelez-nous	-
014	23001339		Nut, Cage	10	Appelez-nous	-
015	23002456		Screw (m6x50)	10	Appelez-nous	-
016	23001337		Washer, Finishing	10	Appelez-nous	-
017	23001338		Washer, Fiber (dia. 15x7x3)	10	Appelez-nous	-
018	23004114		Screw (m6x16)   (Replaces: 23002354)	10	Appelez-nous	-
019	23002462		Screw (m6x20)	10			$ 5.14
020	23002463		Screw (m6 X 30)	10	Appelez-nous	-
021	NLA		Washer	10	Appelez-nous	-
022	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
023	W10244602		Nut (m5)   (Replaces: 23002466)	10			$ 11.90
024	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
025	23002282		Washer (6)	10	Appelez-nous	-
026	23002469		Washer	10	Appelez-nous	-
027	23002436		Nut (m6)	10	Appelez-nous	-
028	23002471		Nut	10	Appelez-nous	-
029	23003371		Stop	10	Appelez-nous	-
030	23001088		Trim, Rubber	10	Appelez-nous	-
