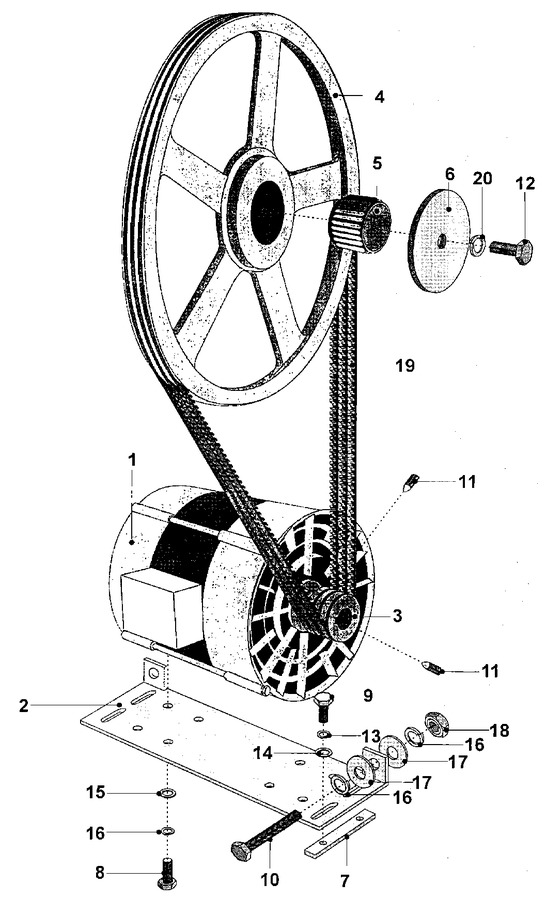

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003391		Motor, 208-240v/60hz	10	Appelez-nous	-
002	23003392		Motor Board Complete	10	Appelez-nous	-
003	23003393		Motor, V-pulley 60hz	10	Appelez-nous	-
004	23001285		Basket Pulley (dia. 450)	10	Appelez-nous	-
005	23001274		Ring, Tolerance	10	Appelez-nous	-
006	23001281		Washer (dia. 90 X 10)	10	Appelez-nous	-
007	23003394		Bar	10	Appelez-nous	-
008	23002648		Screw (m10x20)	10	Appelez-nous	-
009	23002434		Screw (m8x30)	10	Appelez-nous	-
010	23002351		Screw (m10x80)	10	Appelez-nous	-
011	23002930		Screw, Socket Set (m6x6)	10	Appelez-nous	-
012	23001293		Bolt (m14 X 50)	10	Appelez-nous	-
013	23002358		Washer M8	10	Appelez-nous	-
014	23002437		Washer M8	10	Appelez-nous	-
015	23002655		Washer (10.5)	10	Appelez-nous	-
016	23002654		Washer (10)	10	Appelez-nous	-
017	23001282		Washer   (Replaces: 23002633)	10			$ 15.36
018	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
019	23003395		V-belt Spz 2137	10	Appelez-nous	-
020	23002792		Washer (14)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
