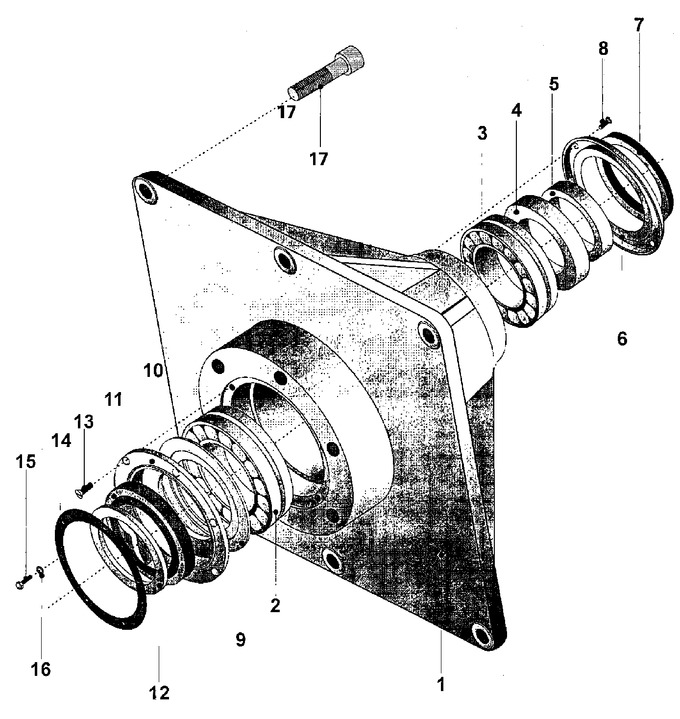

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003425		Trunnion	10	Appelez-nous	-
002	23001210		Front Bearing	10	Appelez-nous	-
003	23001211		Rear Bearing	10	Appelez-nous	-
004	23002974		Ring, Distance (stnls)	10	Appelez-nous	-
005	23001219		Bushing, Brass	10	Appelez-nous	-
006	23001221		Seal, Axial Holder	10	Appelez-nous	-
007	23001220		Seal, Axial	10	Appelez-nous	-
008	23002649		Screw (m6x10)	10	Appelez-nous	-
009	23003815		Sheild Bearing   (Replaces: 23001216)	10	Appelez-nous	-
010	23003426		Holder Axial Seal	10	Appelez-nous	-
011	23001213		Water Seal	10	Appelez-nous	-
012	23001212		Seal Ring	10	Appelez-nous	-
013	23001372		Screw (m4 X 8 Stnls Steel)	10	Appelez-nous	-
014	23003427		Fixating Ring St. Steel	10	Appelez-nous	-
015	23003354		Bolt (m10x25)	10	Appelez-nous	-
016	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
017	23003428		Screw M16x80 Din 912	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
