SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Soap Hopper And Cover


04 - Door Lock


05 - Hoses


06 - Rear Panel And Valves


07 - Drive


08 - Electronics


09 - Tub And Drum


10 - Door


11 - Trunnion


12 - Control Panel

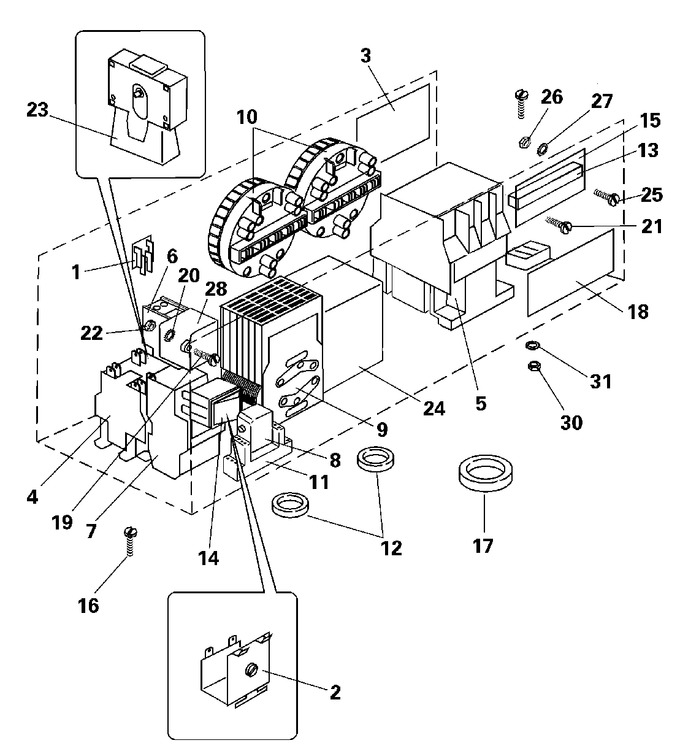

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001094		Bridge, Rectifier	10	Appelez-nous	-
001	23001099		Socket, Pc Board	10	Appelez-nous	-
002	23002955		Buzzer	10	Appelez-nous	-
003	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
004	23001101		Contactor (lc1-d1201 M7)	10	Appelez-nous	-
004	23003751		Contactor Lc1 D12	21	Appelez-nous	-
005	23001103		Contactor (lc1-d3201 M7)	10	Appelez-nous	-
005	23001340		Contactor (lc1-d4011)	10	Appelez-nous	-
006	23003155		Parts, Contactor	10	Appelez-nous	-
007	23001107		Relay, Overload (lr2d1321)	10	Appelez-nous	-
007	23002105		Relay, Overload (lr2d1322)	10	Appelez-nous	-
007	23003759		Overload Relay Lr2d	21	Appelez-nous	-
007	23003760		Overload Relay Lr2d	21	Appelez-nous	-
008	23002956		Schrach, Relay	10	Appelez-nous	-
009	23001110		Timer, Reversing (pr1840)	10	Appelez-nous	-
009	23002886		Screw (m4x4)	10	Appelez-nous	-
010	23001111		Switch, Water Level	10	Appelez-nous	-
010	23002176		Switch, Water Level (eco)	10	Appelez-nous	-
011	23002957		Base, Relay	10	Appelez-nous	-
012	23003396		Cable Passage 11x1	10	Appelez-nous	-
013	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
014	23001114		Rocker Switch, Prewash/no Prew	10	Appelez-nous	-
015	23001115		Insulation Paper	10	Appelez-nous	-
016	23003397		Screw M3x25 (mkii-lc Micro)	10	Appelez-nous	-
017	23001117		Ring, Rubber (dia. 25)	10	Appelez-nous	-
018	23001118		Sticker, Liquid Soap	10	Appelez-nous	-
019	23002423		Screw (m4 X 10)	10	Appelez-nous	-
020	23002426		Washer, Lock (m4)	10	Appelez-nous	-
021	23002398		Screw (m4x16)	10	Appelez-nous	-
021	23002399		Nut(m4)	10	Appelez-nous	-
022	23002399		Nut(m4)	10	Appelez-nous	-
023	23001119		Mechanical Interlock	10	Appelez-nous	-
024	23002954		Transformer	10	Appelez-nous	-
025	23002806		Screw (m6 X 25)	10	Appelez-nous	-
026	23001515		Nut (m6)	10	Appelez-nous	-
027	23001734		Washer (m6)	10	Appelez-nous	-
028	23001518		Series 15 - No Longer Needed		Appelez-nous	-
028	NLA		Net Filter	10	Appelez-nous	-
