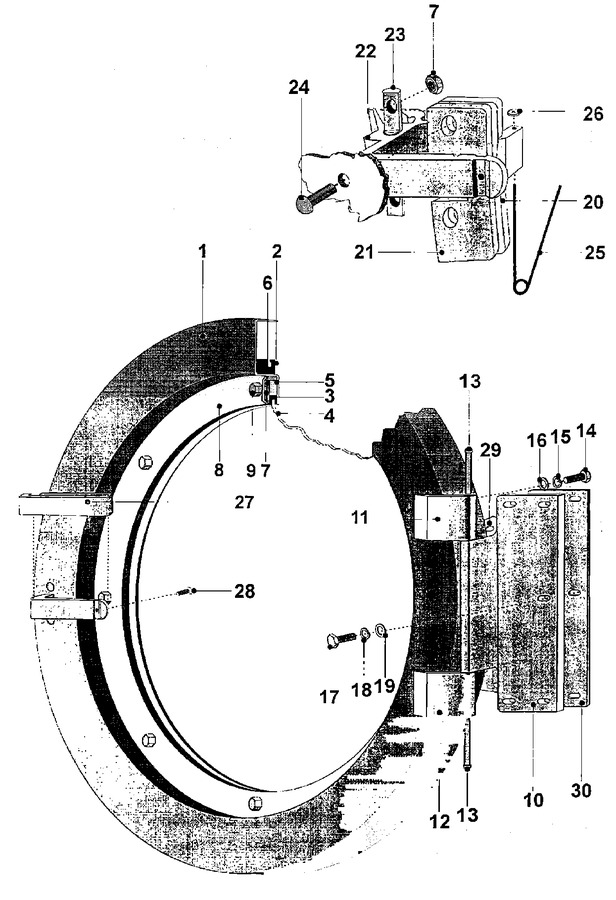

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003412		Door	10	Appelez-nous	-
002	23003413		Gasket, Door	10	Appelez-nous	-
003	23003946		Seal, Glass   (Replaces: 23002688)	10	Appelez-nous	-
004	23003414		Glass, Door	10	Appelez-nous	-
005	23002681		Insertion Piece	10	Appelez-nous	-
006	23002682		Washer	10	Appelez-nous	-
007	23002280		Nut M6	10	Appelez-nous	-
008	23002680		Tyre	10	Appelez-nous	-
009	NLA		Nut (m6)	10	Appelez-nous	-
010	23003415		Hinge Loose Part	10	Appelez-nous	-
011	23003416		Hinge (upr)	10	Appelez-nous	-
012	23003417		Hinge (lwr)	10	Appelez-nous	-
013	23003418		Bush	10	Appelez-nous	-
014	23002279		Bolt (m6x20)	10	Appelez-nous	-
015	23002130		Washer (6)	10	Appelez-nous	-
016	23001643		Washer (m6)	10	Appelez-nous	-
017	23003419		Screw (m8x25)	10	Appelez-nous	-
018	23002727		Washer (8) Lu	10	Appelez-nous	-
019	23001608		Washer (m8) Lu	10	Appelez-nous	-
020	23001370		Handle, Lever Plate	10	Appelez-nous	-
021	23003420		Spacer	10	Appelez-nous	-
022	23003634		Lever, Door	10	Appelez-nous	-
023	23001168		Shaft, Lever	10	Appelez-nous	-
024	23002937		Screw (m6x26)	10	Appelez-nous	-
025	23001169		Spring, Handle Lever	10	Appelez-nous	-
026	23001057		Speednut (m3)	10	Appelez-nous	-
027	12001889		Kit, Door Handle Assembly	10	Appelez-nous	-
027	23003634		Lever, Door	14	Appelez-nous	-
027	23003979		Handle Rail	22	Appelez-nous	-
027	23003980		Handle	22	Appelez-nous	-
028	23001621		Screw (m4x10)	10		Immediately	$ 311.03
028	23003422		Screw, M4x10 Din 966	22	Appelez-nous	-
029	23003423		Washer	10	Appelez-nous	-
030	23003424		Plate, Hinge	10	Appelez-nous	-
