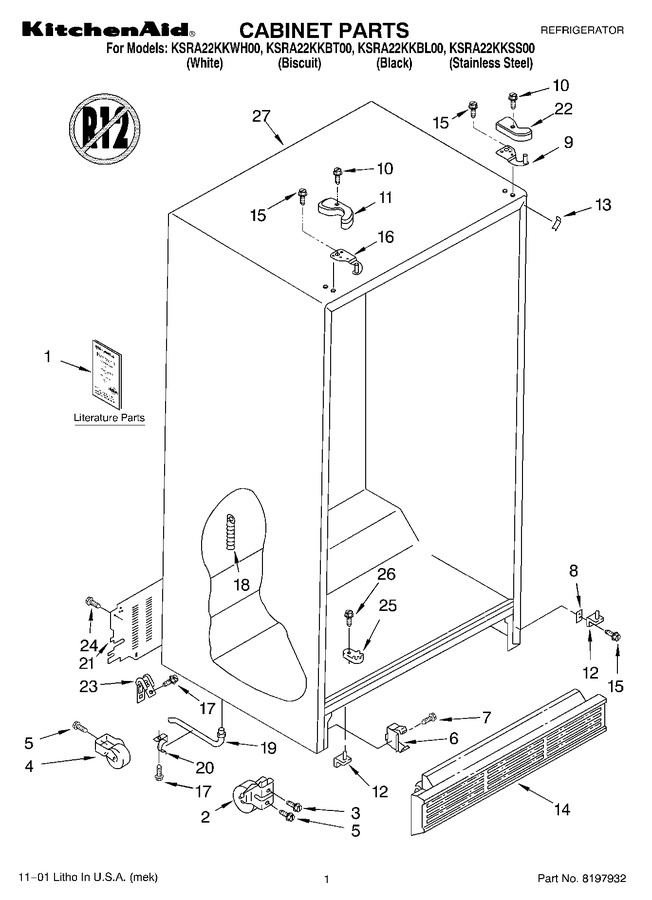

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2219908 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2220137 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT2219888 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 10.69 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 36.15 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 6 | WP2155013 | Clip, Grille (2) (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 8 | 2209697 | Shim |
|
$ 41.25 | |||||
| 9 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 88.40 | |||||
| 10 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.40 | |||||
| 11 | 2203407T | Hinge Cover (fc) (biscuit) |
|
- | |||||
| 11 | WP2203407B | Hinge Cover (fc) (black) (Replaces: 2203407B) |
|
$ 17.57 | |||||
| 11 | WP2203407W | Hinge Cover (fc) (white) (Replaces: 2203407W) |
|
$ 18.68 | |||||
| 12 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 80.01 | |||||
| 13 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 13 | 2196150 | Filler, Wrapper (biscuit) |
|
- | |||||
| 13 | 2196097 | Filler, Wrapper (black) |
|
- | |||||
| 14 | 2198469T | Grille (biscuit) |
|
$ 76.00 | |||||
| 14 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 100.08 | |||||
| 14 | 2198469B | Grille (black) |
|
- | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 85.97 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 45.81 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 28.20 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 9.67 | |||||
| 21 | WP2188756 | Cover, Unit (Replaces: 2171936) |
|
$ 127.50 | |||||
| 22 | 2203408T | Hinge Cover (rc) (biscuit) |
|
- | |||||
| 22 | WP2203408W | Hinge Cover (rc) (white) (Replaces: 2203408W) |
|
$ 18.87 | |||||
| 22 | WP2203408B | Hinge Cover (rc) (black) (Replaces: 2203408B) |
|
$ 16.77 | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 12.05 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 4.89 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 9.78 |
