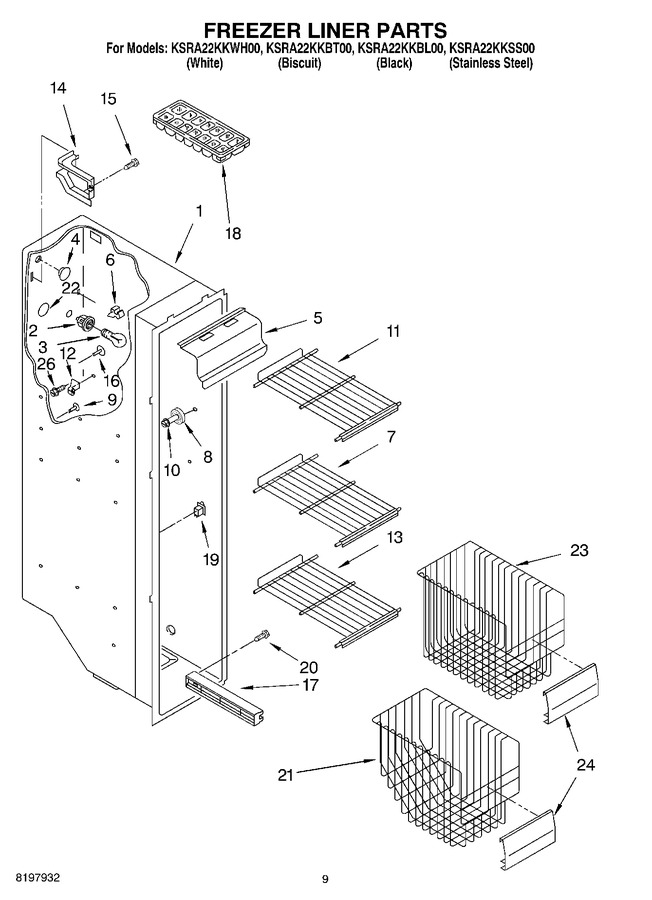

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10119935		Light Socket   (Replaces: 2155597)				$ 90.99
3	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
4	940014		Hole Plug				$ 18.33
5	WP2155595		Light Lens   (Replaces: 2155595)				$ 75.74
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.38
7	2174266		Shelf		Appelez-nous	-
8	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.32
9	2176134		Grommet (4)				$ 5.83
10	WP3400806		Screw   (Replaces: 8281158)				$ 6.94
11	WP2174249K		Shelf (2)   (Replaces: 2174249)				$ 190.07
12	2196207		Support, Stud				$ 7.61
13	2179325		Shelf		Appelez-nous	-
14	2161915		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 12.62
16	WP941839		Hole, Plug   (Replaces: 941839)				$ 6.89
17	2181760		Slide, Bin (right Side)		Appelez-nous	-
17	2181759		Slide, Bin (left Side)		Appelez-nous	-
18	WP841180A		Ice Cube Tray (2)   (Replaces: 841180)			Immediately	$ 41.00
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 33.51
20	W10759522		Screw   (Replaces: 486298)				$ 6.98
21	2181762		Basket, Slope		Appelez-nous	-
22	2185731		Icemaker, Hole Seal		Appelez-nous	-
23	2181761		Basket, Tall		Appelez-nous	-
24	2171768		Trim, Basket		Appelez-nous	-
26	W10142289		Screw   (Replaces: 3400893)				$ 8.24
