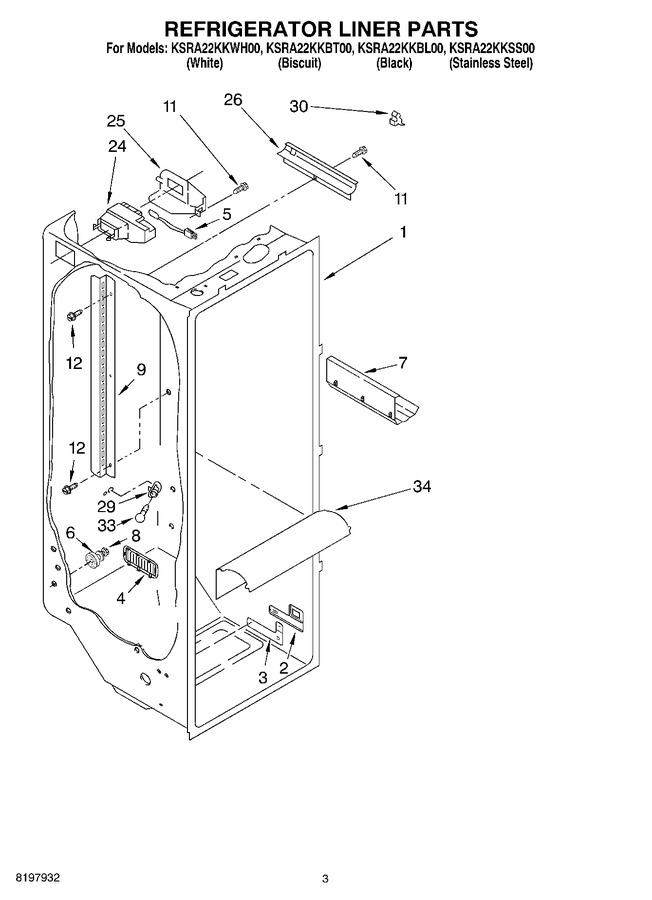

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 82.15 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 5 | WP2188819 | Thermistor (Replaces: 2216113) |
|
Immediately | $ 41.41 | ||||
| 6 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 12.66 | ||||
| 7 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 21.24 | |||||
| 8 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 7.25 | |||||
| 9 | 2206270 | Ladder, Shelf (2) |
|
- | |||||
| 11 | W10759522 | Screw (2) (Replaces: 486298) |
|
$ 6.98 | |||||
| 12 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.01 | ||||
| 24 | WP2216112 | Air Diffuser Assembly (Replaces: 2216112) |
|
Immediately | $ 322.97 | ||||
| 25 | WP2212240 | Air Diffuser Cover (Replaces: 2212240) |
|
$ 118.41 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 21.96 | |||||
| 29 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 9.38 | |||||
| 33 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 34 | 2206269 | Light Lens |
|
- |
