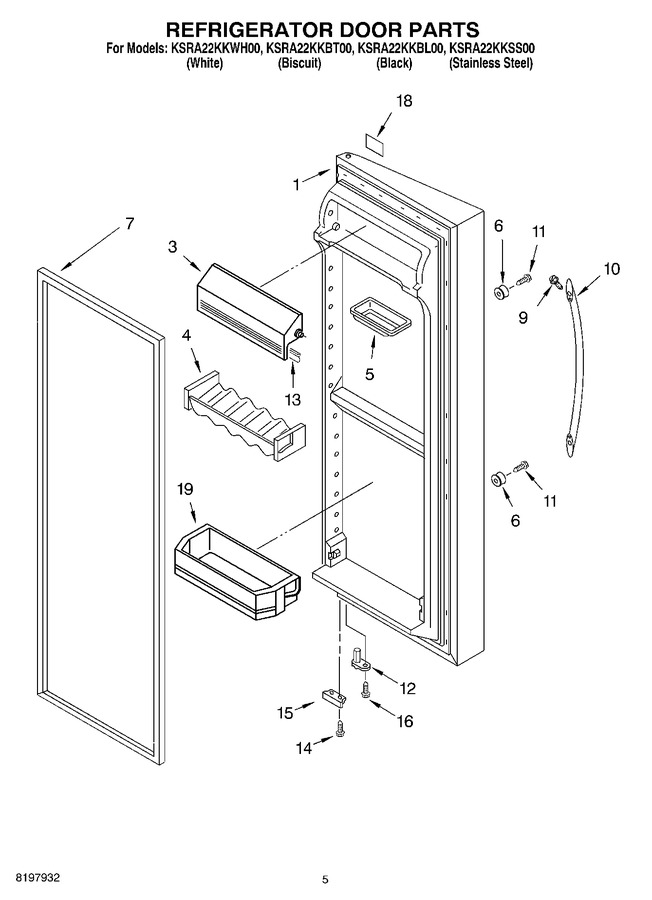

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206780W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2206780T		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
1	2206780B		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	2206780SB		Refrigerator Door (includes No.7) (stainless Steel)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Butter, Dish		Appelez-nous	-
6	2203690		Stud, Handle Mounting		Appelez-nous	-
7	2159081		Door Gasket, Magnetic (black)   (Replaces: 2196237)				$ 287.64
7	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2196239)				$ 285.59
9	98654		Screw, Set		Appelez-nous	-
10	2204454B		Handle (black)		Appelez-nous	-
10	2204454W		Handle (white)		Appelez-nous	-
10	2204454T		Handle (biscuit)		Appelez-nous	-
10	2204454S		Handle (stainless Steel)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.04
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2200082B		Bracket, Door Stop (black)				$ 42.44
15	2200082		Bracket, Door Stop (chrome)				$ 5.83
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	2212761		Nameplate (biscuit)		Appelez-nous	-
18	2212762		Nameplate (black)		Appelez-nous	-
18	2212760		Nameplate (white)		Appelez-nous	-
19	2205821		Shelf Bin (4)		Appelez-nous	-
