SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Liner


07 - Air Flow


08 - Unit


09 - Control, Optional

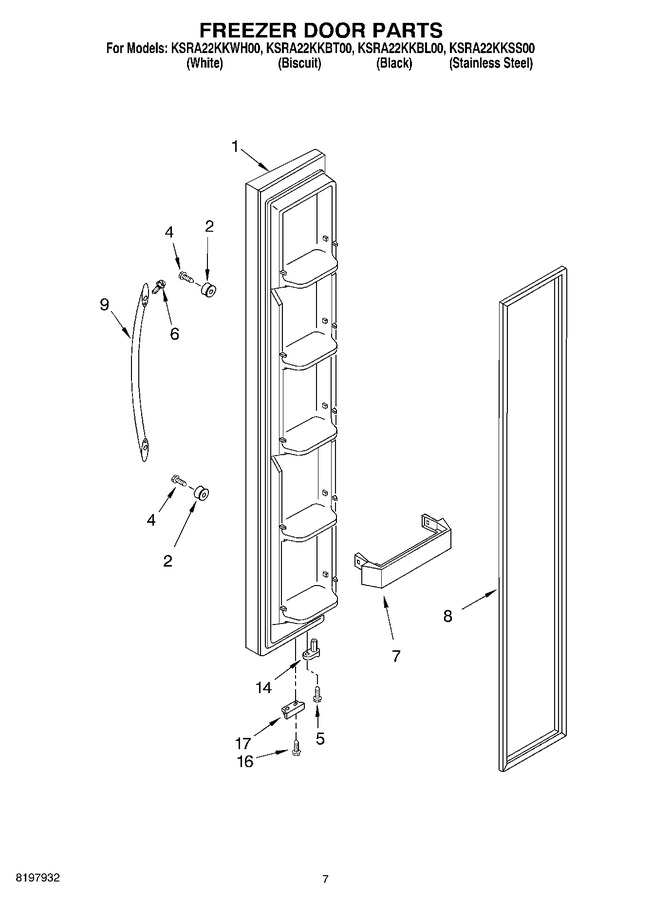

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219857T		Freezer Door (includes No.8) (biscuit)		Appelez-nous	-
1	2219857B		Freezer Door (includes No.8) (black)		Appelez-nous	-
1	2219857SB		Freezer Door (includes No.8) (stainless Steel)		Appelez-nous	-
1	2219857W		Freezer Door (includes No.8) (white)		Appelez-nous	-
2	2203690		Stud, Handle Mounting		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	98654		Screw, Set		Appelez-nous	-
7	2171071		Shelf Bin (5)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2196238)				$ 279.35
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2196240)				$ 277.37
9	2204454B		Handle (black)		Appelez-nous	-
9	2204454S		Handle (stainless Steel)		Appelez-nous	-
9	2204454T		Handle (biscuit)		Appelez-nous	-
9	2204454W		Handle (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2200082B		Bracket, Door Stop (black)				$ 42.44
17	2200082		Bracket, Door Stop (chrome)				$ 5.83

    View Diagram in Separate Window       Print Part List
