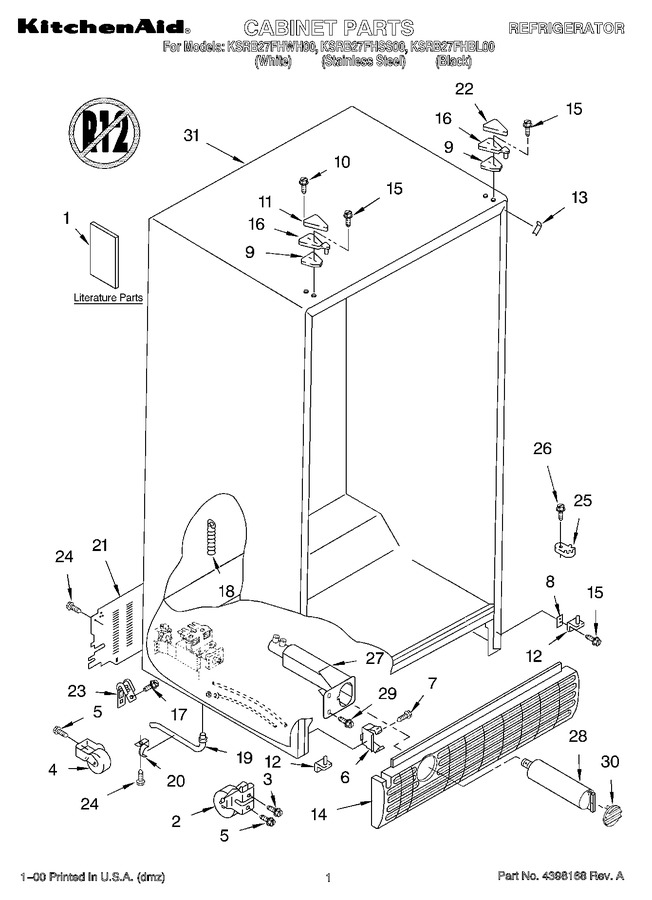

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2200139 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | LIT2203998 | Energy Label |
|
- | |||||
| 1 | LIT2200278 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 489456) |
|
$ 10.69 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 36.15 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 8 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 29.89 | |||||
| 9 | 2196049 | Shim, Hinge Top |
|
- | |||||
| 10 | 489284 | Screw |
|
- | |||||
| 11 | 2171947W | Hinge Cover (white) |
|
- | |||||
| 11 | 2171947 | Hinge Cover (black) |
|
- | |||||
| 12 | 8201707 | Hinge Bottom (2) (Replaces: 2171851) |
|
$ 80.01 | |||||
| 13 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 13 | 2196097 | Filler, Wrapper (black) |
|
- | |||||
| 14 | W10803964 | Grille (white) (Replaces: 2198468W) |
|
$ 114.93 | |||||
| 14 | W10803964 | Grille (black) (Replaces: 2198468B) |
|
$ 114.93 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 94.00 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 45.81 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 28.20 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 9.67 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2176140) |
|
$ 122.32 | |||||
| 22 | 1119787 | Hinge Cover (white) |
|
$ 22.50 | |||||
| 22 | 2155938 | Hinge Cover (black) |
|
$ 15.55 | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 12.05 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 4.89 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 9.78 | |||||
| 27 | WP2186443 | Housing, Water Filter (Replaces: 2186443) |
|
Immediately | $ 87.62 | ||||
| 28 | EDR5RXD1B | Filter, Water (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 29 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.00 | |||||
| 30 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186884W) |
|
$ 50.15 | |||||
| 30 | WP2186494B | Cap, Water Filter (black) (Replaces: 2186884B) |
|
Immediately | $ 47.88 | ||||
| 31 | N/A | Cabinet (not A Serviceable Part) |
|
- |
