SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container

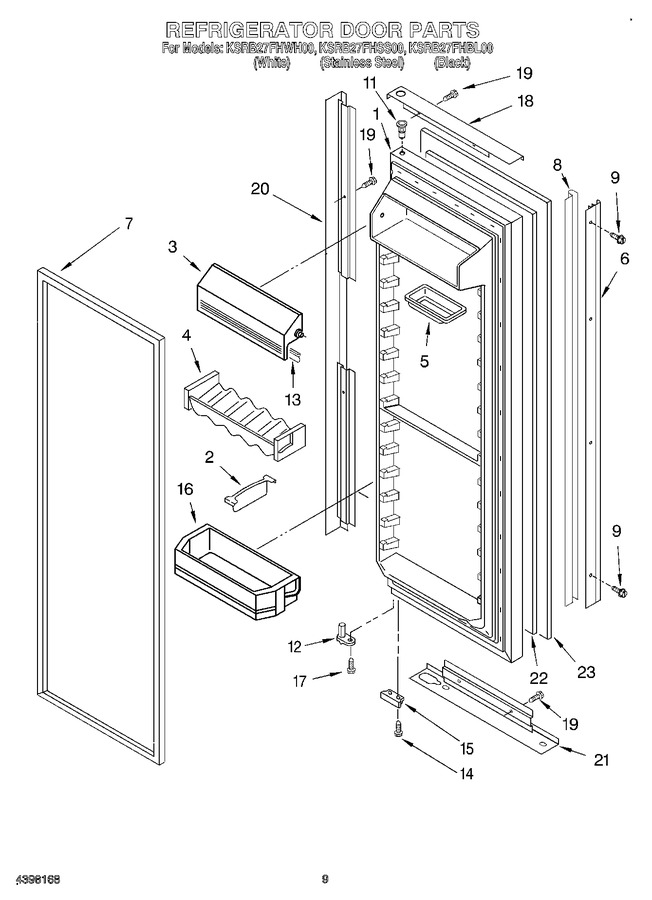

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203357B		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	2203357W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2195497		Load Lock		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2203817S		Handle (stainless)		Appelez-nous	-
6	2203811B		Handle (black)		Appelez-nous	-
6	2203811W		Handle (white)		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 285.43
7	2159083		Door Gasket, Magnetic (service) (black)				$ 226.34
8	2204374W		Edging, Panel (white)		Appelez-nous	-
8	2204374B		Edging, Panel (black)		Appelez-nous	-
9	3400897		Screw (chrome)		Appelez-nous	-
9	3400898		Screw (white)		Appelez-nous	-
9	3400899		Screw (black)				$ 7.74
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 6.98
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2155331		Bracket, Door Stop		Appelez-nous	-
16	2171062		Shelf Bin (4)				$ 40.08
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	2203382W		Trim, Door (top) (white)		Appelez-nous	-
18	2203383S		Trim, Door (top) (stainless)		Appelez-nous	-
18	2203382B		Trim, Door (top) (black)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	2186689W		Trim, Door (hinge Side) (white)		Appelez-nous	-
20	2186766S		Trim, Door (hinge Side) (stainless)		Appelez-nous	-
20	2186689B		Trim, Door (hinge Side) (black)		Appelez-nous	-
21	2203378B		Trim, Door (bottom) (black)		Appelez-nous	-
21	2203378W		Trim, Door (bottom) (white)		Appelez-nous	-
21	2203379S		Trim, Door (bottom) (stainless)		Appelez-nous	-
22	2208279		Filler, Panel		Appelez-nous	-
23	2203294S		Panel (stainless)		Appelez-nous	-
23	2203288W		Panel (white)		Appelez-nous	-
23	2203288B		Panel (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
