SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door

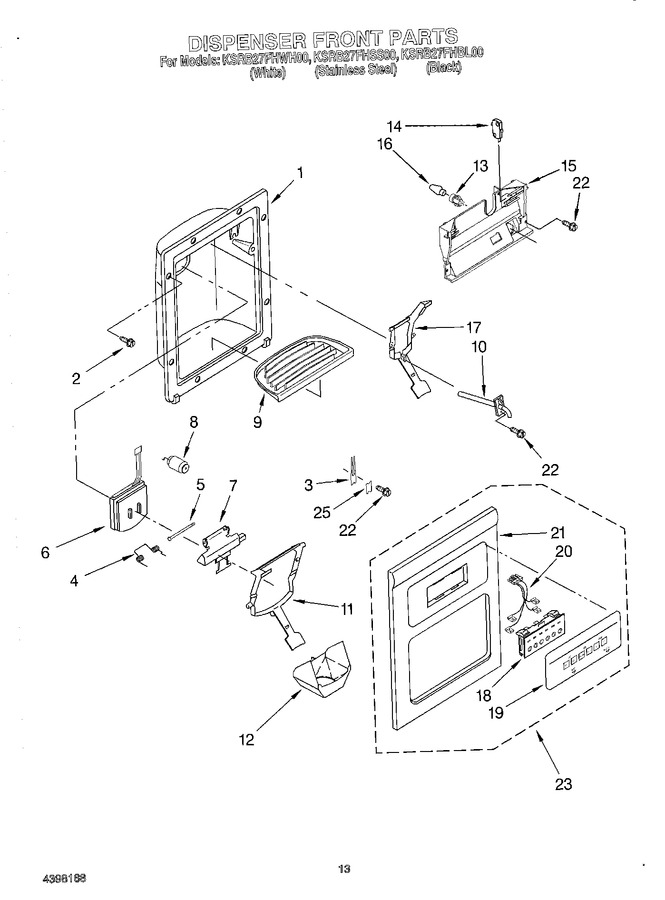

08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.07
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 10.59
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 74.92
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.12
6	2180205		Door, Ice		Appelez-nous	-
7	2180208		Door Mechanism Assembly		Appelez-nous	-
8	2180223		Delay Mechanism		Appelez-nous	-
9	WP2180325		Grille, Overflow (black)   (Replaces: 2180325)			Immediately	$ 62.10
9	2180323		Grille, Overflow (white)				$ 30.68
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 248.79
11	2180261		Lever, Ice Dispenser (black (storm Grey Pad))		Appelez-nous	-
11	2180259		Lever, Ice Dispenser (white (white Shadow Pad))				$ 42.12
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 24.87
13	2180200		Lamp Holder				$ 88.79
14	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 24.61
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 21.95
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 12.29
17	WPW10152858		Lever, Water Dispenser (white (white Shadow Pad))   (Replaces: 2180268)			Immediately	$ 94.14
17	WPW10152859		Lever, Water Dispenser (black (storm Grey Pad))   (Replaces: 2180270)			Immediately	$ 88.13
18	WP2180236		Switch Assembly (also Order Item No.19)   (Replaces: 2180236)				$ 246.86
19	2186718W		Overlay, Front Cover (white)		Appelez-nous	-
19	2186718B		Overlay, Front Cover (black)		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2196199)				$ 80.71
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.06
23	2186714B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2186714W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 10.50

    View Diagram in Separate Window       Print Part List
