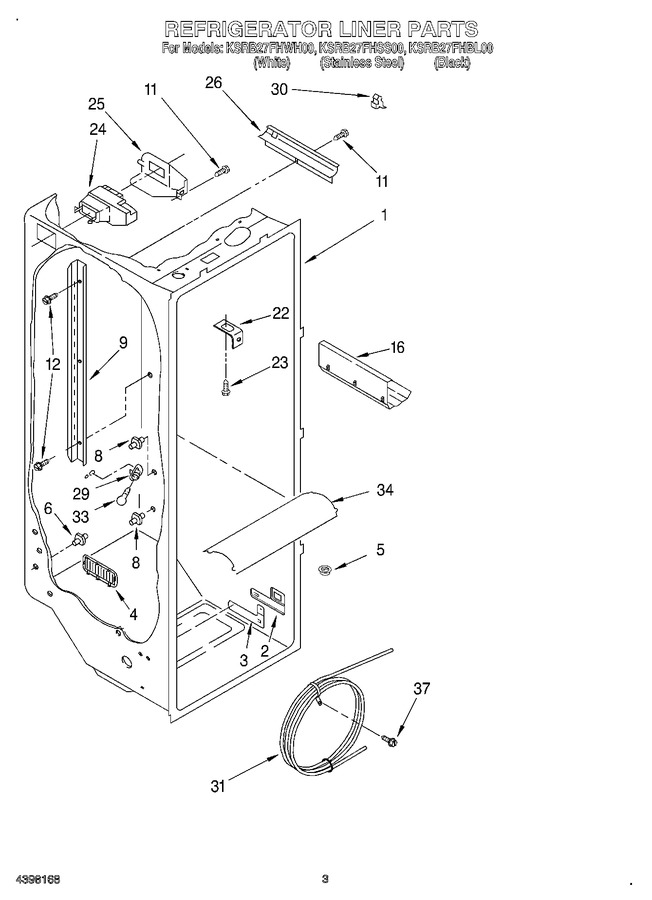

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 82.15
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
5	2171846		Release Valve				$ 18.99
6	4388539		Stud (2)   (Replaces: 2172943)				$ 15.79
8	4388538		Stud (10)   (Replaces: 1110718)			Immediately	$ 28.21
9	2181796		Ladder, Shelf (2)		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: 486298)				$ 6.98
12	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.01
16	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 21.24
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 30.94
23	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
24	WP2209751		Air Diffuser Assembly   (Replaces: 2161467)				$ 310.72
25	WP2212240		Air Diffuser Cover   (Replaces: 2161470)				$ 118.41
26	2150331		Cover, Conduit				$ 21.96
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 99.14
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 9.38
31	WP2256126		Reservoir   (Replaces: 2196171)				$ 151.97
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
34	2203266		Light Lens				$ 45.86
37	488280		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
