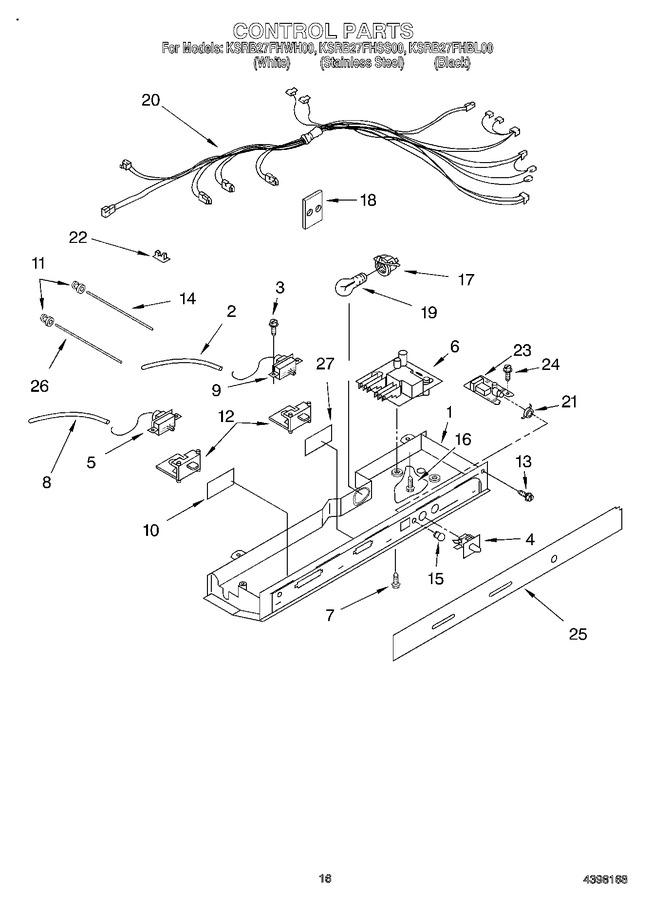

10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2200134)		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 36.36
5	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 203.67
6	4388932		Adaptive Defrost Control   (Replaces: 2188159)			Immediately	$ 240.38
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
8	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 7.16
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 223.80
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light Bar (rc)				$ 37.08
15	2200096		Cover, Light Lens				$ 64.10
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	2172931		Heat Shield				$ 63.34
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
20	2200109		Control Box Harness		Appelez-nous	-
21	2200097		Retainer, Light Lens		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	2200098		P.c. Board Filter Indicator		Appelez-nous	-
24	2006254		Screw   (Replaces: 489214)				$ 11.82
25	2200099		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
