SELECT A DIAGRAM

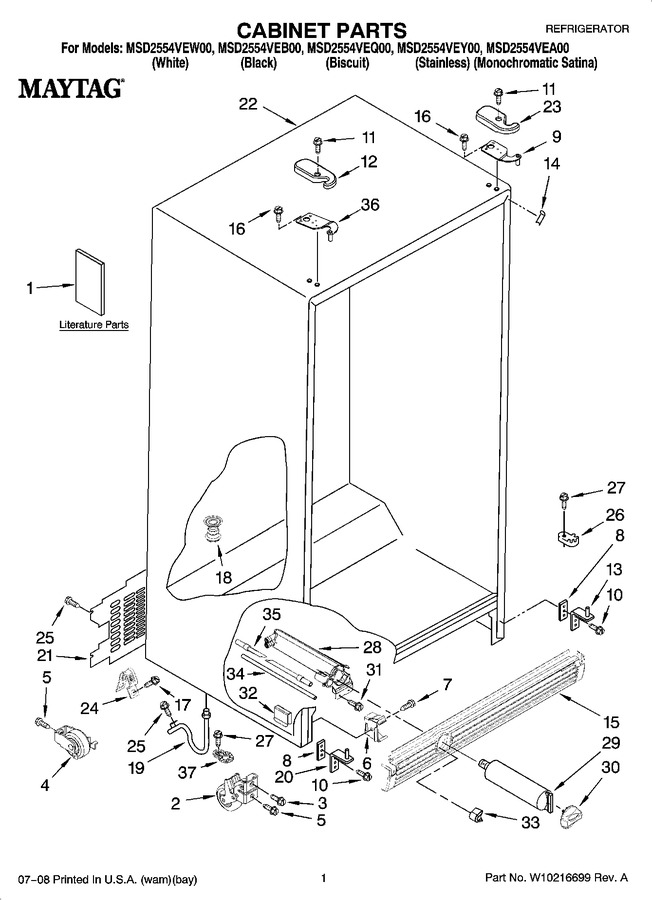

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10159882		Owner`s Manual		Appelez-nous	-
1	W10181247		Instruction Sheet (door Removal)		Appelez-nous	-
1	W10180857		Service And Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 10.69
4	WPW10250570		Rear Roller (2)   (Replaces: 2196236)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489478		Screw   (Replaces: 489478)				$ 6.98
8	2209697		Shim				$ 41.25
9	WP2203771		Hinge Top, Rc   (Replaces: 2203771)				$ 88.40
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
11	WP8281227		Screw   (Replaces: 8281227)				$ 9.40
12	W10138583		Hinge Cover (fc) (biscuit)		Appelez-nous	-
12	W10138584		Hinge Cover (fc) (apollo Grey)				$ 15.17
12	W10138582		Hinge Cover, Fc (black)				$ 34.30
12	W10138581		Hinge Cover (fc) (white)		Appelez-nous	-
13	8201707		Bottom Hinge (rc)   (Replaces: 2217075)				$ 80.01
14	WPW10283959		Filler, Wrapper (white)   (Replaces: 2201014)				$ 7.04
14	W10851579		Filler, Wrapper (apollo Grey)   (Replaces: 2254507)			Immediately	$ 6.47
14	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 11.21
15	2323580W		Grille (white)		Appelez-nous	-
15	WPW10184888		Grille (black)   (Replaces: 2323580B)				$ 188.56
15	2323580T		Grille (biscuit)		Appelez-nous	-
15	WPW10184890		Grille (midnight Grey)   (Replaces: 2323580MG)				$ 142.83
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 45.81
19	W11512417		Extension Tube   (Replaces: 2304937)				$ 31.31
20	2323833		Bottom Hinge (fc)		Appelez-nous	-
21	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 122.32
23	W10138579		Hinge Cover (rc) (apollo Grey)				$ 35.68
23	W10138578		Hinge Cover (rc) (biscuit)		Appelez-nous	-
23	W10138577		Hinge Cover, Rc (black)				$ 34.45
23	W10138576		Hinge Cover (rc) (white)		Appelez-nous	-
24	549193		Clamp, Service Cord				$ 12.05
25	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
26	WPW10329686		Door Closer, Lower Cam (rc)   (Replaces: 2155311)			Immediately	$ 4.89
27	WP489483		Screw   (Replaces: 489483)				$ 9.78
28	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 101.62
29	EDR3RXD1B		Water Filter   (Replaces: 8212650)			Immediately	$ 49.99
30	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 50.43
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 25.43
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 28.71
30	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
31	WP489500		Screw   (Replaces: 489500)				$ 7.00
32	2260519		Block, Housing Support		Appelez-nous	-
33	2260503W		Button, Water Filter (white)			Immediately	$ 30.74
33	2260503MG		Button, Water Filter (midnight Grey)				$ 24.31
33	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 65.50
33	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 65.50
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 103.99
35	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 69.32
36	WP2203770		Hinge, Top Fc   (Replaces: 2203770)				$ 85.97
37	W11778262		Door Closer Lower Cam (fc)   (Replaces: 2223751)				$ 9.97
