SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

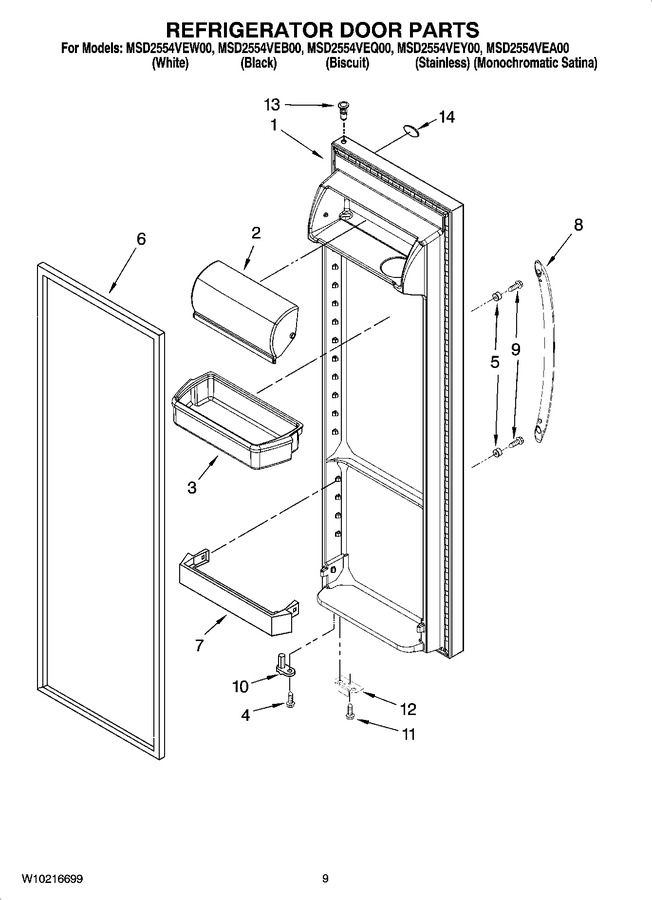

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10172362		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	W10172363		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10172364		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	W10172369		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10172476		Refrigerator Door (includes Item 6) (satina)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 76.64
3	WPW10321304		Shelf Bin (3)   (Replaces: 2304235)			Immediately	$ 40.26
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
5	WPW10170540		Stud   (Replaces: 2326259)			Immediately	$ 7.66
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327163)				$ 287.48
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 226.34
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 285.43
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 65.52
8	13004701W		Handle (includes 13) (white)   (Replaces: 67006114)				$ 166.26
8	67006982		Handle (includes 13) (biscuit)				$ 170.06
8	67006115		Handle (includes 13) (black)		Appelez-nous	-
8	W11690159		Handle (includes 13) (stainless/satina)   (Replaces: 67006391)				$ 148.94
9	WP488163		Screw (2)   (Replaces: 488208)				$ 6.79
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
11	WP489483		Screw   (Replaces: 489420)				$ 9.78
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 36.03
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 6.98
14	2324038		Nameplate				$ 61.36

    View Diagram in Separate Window       Print Part List
